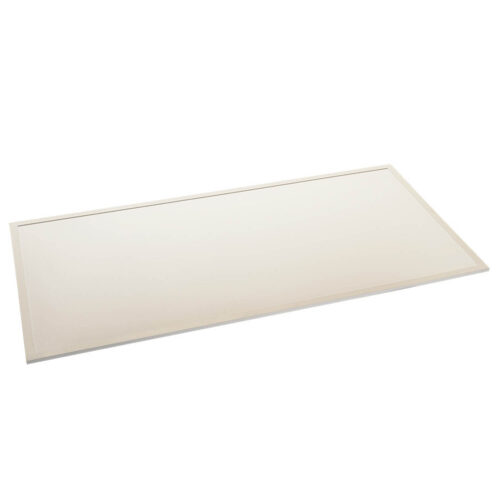

LED panel 1200×600
PANEL LED 1200x600mm 48W 230V IP20 4000K
Cod. 6361019
IP20
Protected from solid bodies larger than 12 mm
II
Protection class II
CRI >80
Colour rendering index >80
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Product code: 6361019 | Category: Indoor luminaires | Model: LED panel 1200x600 | Product description: PANEL LED 1200x600mm 48W 230V IP20 4000K | Source type: SMD 4014 | Number of LEDs: 252 | Color temperature (CCT): 4000K | Color render index (CRI): > 80 | MacAdam (SDCM): < 6 | Lumen output (lm): 4800 | Beam angle: 120° | LED Lifetime: 40.000 h | Energy efficiency class: This contains a light source of energy efficiency class (EU2019/2015): F | Width (mm): 595 | Length (mm): 1195 | Height (mm): 10 | Weight (g): 5000 | IP rating: IP 20 | Finishing colour: White RAL9016 | Body material: Aluminum | Diffuser material: PS (polystyrene) | Maximal working temperature: -20° C | Minimal working temperature: +40° C | Nominal power (W): 48 | Power factor: > 0,9 | Power supply: 230V 50/60Hz | Ballast: Included | Insulation class: II | Dimmable: No |
Lighting data
|
Source type
SMD 4014
|
|
Number of LEDs
252
|
|
Color temperature (CCT)
4000K
|
|
Color render index (CRI)
> 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
4800
|
|
Beam angle
120°
|
|
LED Lifetime
40.000 h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): F
|
Mechanical data
|
Width (mm)
595
|
|
Length (mm)
1195
|
|
Height (mm)
10
|
|
Weight (g)
5000
|
|
IP rating
IP 20
|
|
Finishing colour
White RAL9016
|
|
Body material
Aluminum
|
Electrical data
|
Nominal power (W)
48
|
|
Power factor
0,9
|
|
Power supply
230V 50/60Hz
|
|
Ballast
Included
|
|
Insulation class
II
|
|
Dimmable
No
|
