Backlit LED 600×600
BACKLIT PANEL LED 595x595mm 36W IP20 UGR19 4000K CRI80
Cod. 6361222
Add to wishlist
IP20
Protected from solid bodies larger than 12 mm
II
Protection class II
CRI >80
Colour rendering index >80
UGR <19
Meets the parameters of the UNI EN 12464-1 standard on workplace lighting
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
High-efficiency backlit LED panel, designed for uniform, shadow-free illumination. The 4000K light ensures ideal visual comfort for offices, schools, and professional environments. UGR19 versions available for workstations compliant with lighting regulations.
Lighting data
|
Source type
SMD SMD
|
|
Color temperature (CCT)
4000K
|
|
Color render index (CRI)
> 80 > 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
3600
|
|
Beam angle
90°
|
|
Photobiological risk
Risk Group 0 (exempt)
|
|
LED Lifetime
L70 B30 25.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): E
|
Mechanical data
|
Width (mm)
595
|
|
Length (mm)
595
|
|
Height (mm)
32
|
|
Weight (g)
1420
|
|
IP rating
IP 20
|
|
IK rating
IK02
|
|
Finishing colour
White RAL9003 White RAL9003
|
|
Body material
Iron
|
|
Diffuser material
PS (polystyrene)
|
|
Maximal working temperature
-40° C
|
|
Minimal working temperature
-20° C
|
Electrical data
|
Nominal power (W)
36
|
|
Power factor
> 0,9
|
|
Power supply
230V 50/60Hz 230V 50/60Hz
|
|
Ballast
Included Included
|
|
Insulation class
II
|
|
Dimmable
No
|
|
Quantity per package
1
|
|
Total quantity per boxing
5
|
Marks

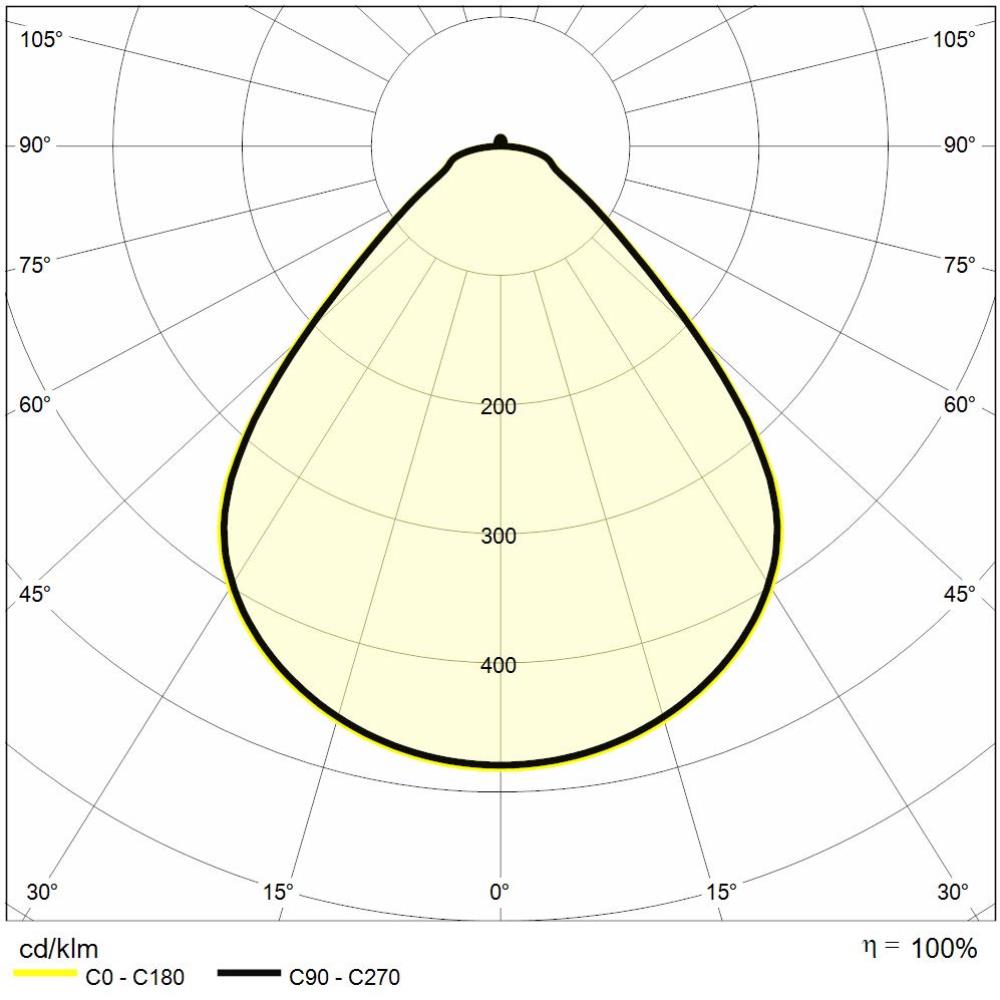

Photometry
