LED Strip 2835 10mm
LED STRIP 2835 3,3W/0,5m 24V 5m IP20 3000K
Cod. 6360912
Add to wishlist
IP20
Protected from solid bodies larger than 12 mm
E
Energy efficiency class E
III
Protection class III
CRI >80
Colour rendering index >80
CAM compliant
CAM (Minimum Environmental Criteria) compliant product for indoor and outdoor installation
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Professional LED strip in a 5-meter reel, ideal for decorative and technical lighting. Available with various chips and wattages to match profiles, ceilings, and backlights. IP65/IP67 versions available for installation in humid environments or outdoors.
Lighting data
|
Source type
SMD 2835
|
|
Number of LEDs
70/m
|
|
Color temperature (CCT)
3000K
|
|
Color render index (CRI)
> 80 > 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
794 lm/m
|
|
Beam angle
120° 120°
|
|
Photobiological risk
RG1 (low risk) RG1 (low risk)
|
|
LED Lifetime
50.000 h
|
|
Energy efficiency class
E
|
Mechanical data
|
Width (mm)
5000
|
|
Length (mm)
8
|
|
IP rating
IP 20
|
|
Maximal working temperature
+45° C
|
|
Minimal working temperature
-20° C
|
Electrical data
|
Nominal power (W)
6,6 W/m
|
|
Power supply
24Vdc
|
|
Insulation class
III
|
|
Dimmable
No
|
|
Quantity per package
1
|
|
Total quantity per boxing
60
|
Marks

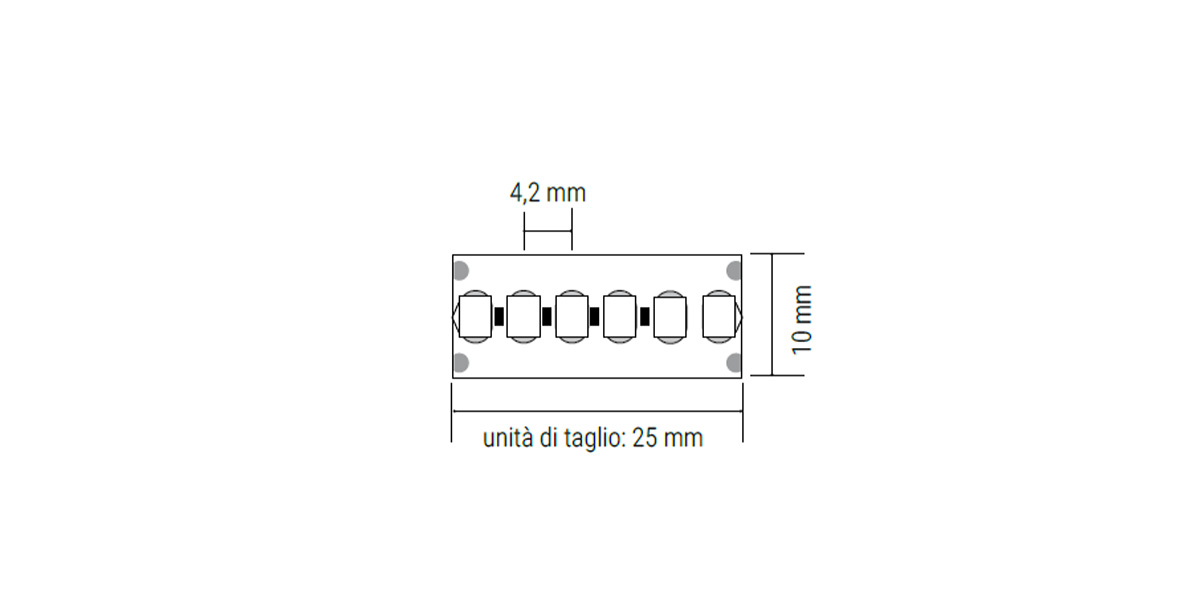

Technical drawing
