Magneto Moon CCT
MAGNETO MOON WHITE 1,2W CCT
Cod. 6361251
Add to wishlist
IP20
Protected from solid bodies larger than 12 mm
III
Protection class III
CRI >90
Colour rendering index >90
Variable CCT
Selectable colour temperature
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description

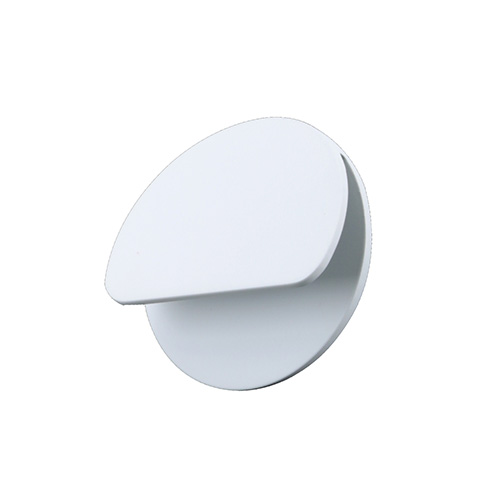

Compact magnetic LED luminaire for orientation lighting. The CCT function allows you to choose the most suitable light color. Ideal for corridors, stairways, and nighttime pathways.
Lighting data
|
Source type
SMD SMD
|
|
Color temperature (CCT)
2700 / 3000 / 4000K
|
|
Color render index (CRI)
> 90 > 90
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
54
|
|
Beam angle
120° 120°
|
|
Photobiological risk
Risk Group 1 (Low Risk) Risk Group 1 (Low Risk)
|
|
LED Lifetime
L70 B50 50.000h L70 B50 50.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): F
|
Mechanical data
|
Height (mm)
2,5
|
|
Weight (g)
24
|
|
IP rating
IP20
|
|
IK rating
IK04
|
|
Finishing colour
White RAL9003 White RAL9003
|
|
Body material
Aluminium Aluminum
|
|
Diffuser material
Polycarbonate
|
|
Maximal working temperature
+45° C
|
|
Minimal working temperature
-20° C
|
Electrical data
|
Nominal power (W)
1,7
|
|
Power factor
0,4
|
|
Power supply
230V 50/60Hz 230V 50/60Hz
|
|
Insulation class
III
|
|
Dimmable
No
|
|
Quantity per package
1
|
|
Total quantity per boxing
300
|
Marks

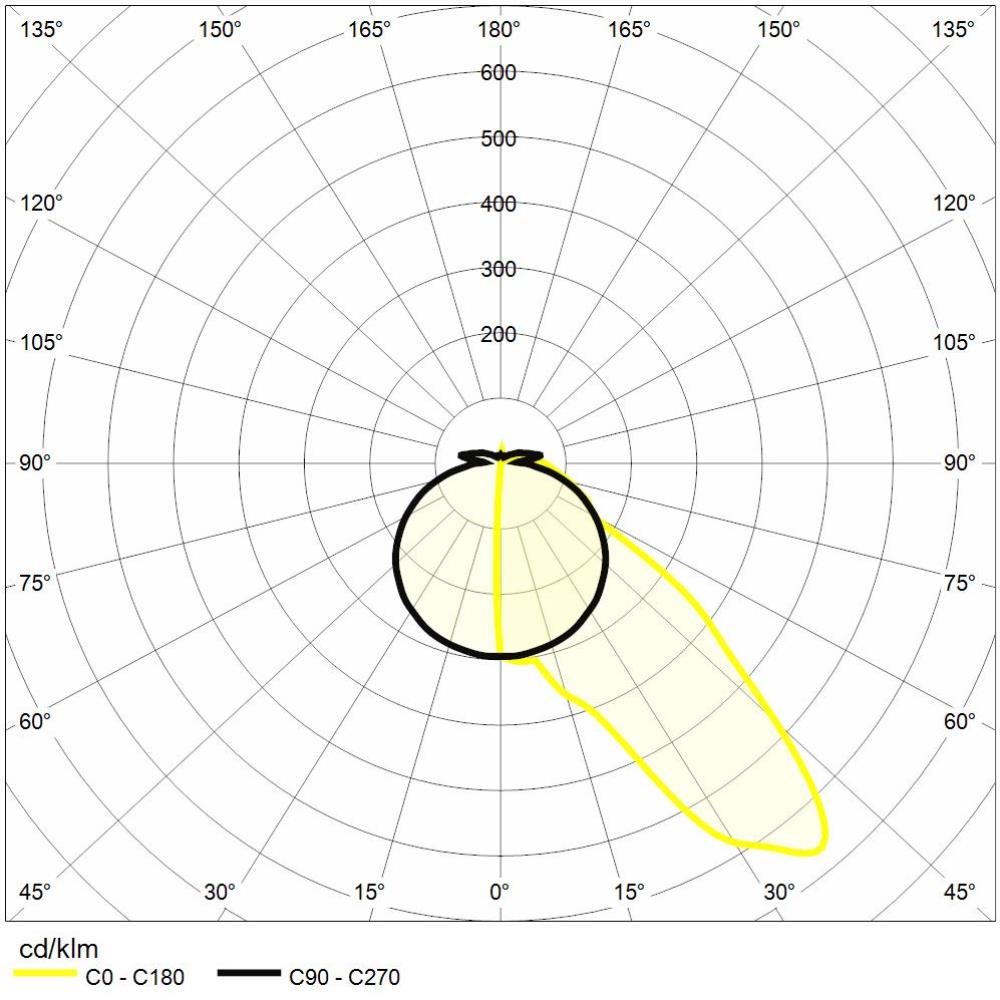

Photometry
Technical drawing
