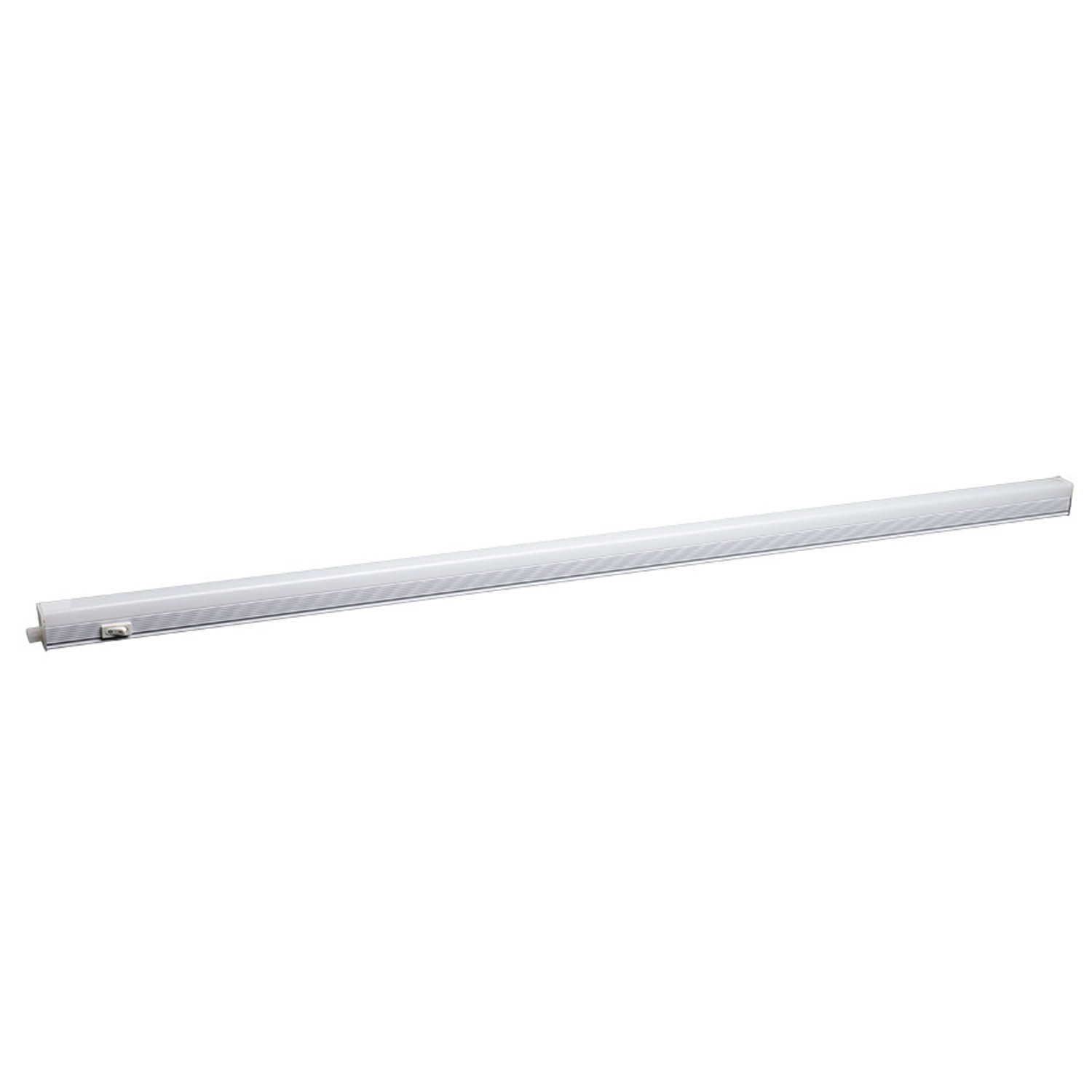

Miniled II – 1479mm
MINILED II 21W 3000K 1479x22x30mm
Cod. 6360693
Add to wishlist
IP20
Protected from solid bodies larger than 12 mm
II
Protection class II
CRI >80
Colour rendering index >80
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Professional LED strips for continuous and uniform lighting. Available in various wattages and sizes for custom installations. Ideal for offices, shops, and modern interiors.
Lighting data
|
Source type
SMD 2835
|
|
Number of LEDs
234
|
|
Color temperature (CCT)
3000K
|
|
Color render index (CRI)
> 80 > 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
2500
|
|
Beam angle
150°
|
|
Photobiological risk
RG0 (exempt)
|
|
LED Lifetime
25.000 h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): E
|
Mechanical data
|
Width (mm)
22
|
|
Length (mm)
1479
|
|
Height (mm)
30
|
|
Weight (g)
630
|
|
IP rating
IP 20
|
|
Finishing colour
White
|
|
Body material
Aluminum Aluminum
|
|
Diffuser material
PC (polycarbonate)
|
|
Maximal working temperature
+50° C
|
|
Minimal working temperature
-20° C
|
Electrical data
|
Nominal power (W)
24
|
|
Power factor
> 0,5
|
|
Power supply
230V 50/60Hz 230V 50/60Hz
|
|
Ballast
Integrated Integrated
|
|
Insulation class
II
|
|
Dimmable
No
|
|
Quantity per package
1
|
|
Total quantity per boxing
20
|
Marks
Photometry
Technical drawing
Documentation
Accessories
