Tablet V Power 100W
TABLET V POWER 100W IP65 BLACK 6500K
Cod. 6361233
Add to wishlist
IP65
Dustproof and protected against water jets
I
Protection class I
CRI >80
Colour rendering index >80
CAM compliant
CAM (Minimum Environmental Criteria) compliant product for indoor and outdoor installation
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Product code: 6361233 | Category: Outdoor luminaires | Model: Floodlights | Product description: TABLET POWER 100W IP65 BLACK 6500K | Source type: SMD | Color temperature (CCT): 6500K | Color render index (CRI): > 80 | MacAdam (SDCM): < 6 | Lumen output (lm): 12121 | Beam angle: 110° | BUG Rating: Risk Group 0 (exempt) | LED Lifetime: L70 B50 50.000h | Energy efficiency class: This contains a light source of energy efficiency class (EU2019/2015): E | Width (mm): 285 | Length (mm): 226 | Height (mm): 30,5 | Weight (g): 1260 | IP rating: IP 65 | IK rating: IK06 | Finishing colour: Black RAL9005 | Body material: Aluminium | Diffuser material: Tempered glass | Maximal working temperature: +45° C | Minimal working temperature: - 40° C | Nominal power (W): 100 | Power factor: > 0,9 | Power supply: 230V 50/60Hz | Ballast: Integrated | Insulation class: I | Dimmable: No |
Lighting data
|
Source type
SMD
|
|
Color temperature (CCT)
|
|
Color render index (CRI)
> 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
|
|
Beam angle
|
|
Photobiological risk
|
|
LED Lifetime
L70 B50 50.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): E
|
Mechanical data
|
Width (mm)
|
|
Length (mm)
|
|
Height (mm)
|
|
Weight (g)
|
|
IP rating
IP 65
|
|
IK rating
|
|
Finishing colour
Black RAL9005
|
|
Body material
Aluminum
|
|
Diffuser material
Tempered glass
|
|
Maximal working temperature
+45° C
|
|
Minimal working temperature
|
Electrical data
|
Nominal power (W)
100
|
|
Power factor
|
|
Power supply
230V 50/60Hz
|
|
Ballast
Integrated
|
|
Insulation class
I
|
|
Dimmable
No
|
|
Quantity per package
|
|
Total quantity per boxing
|
Marks

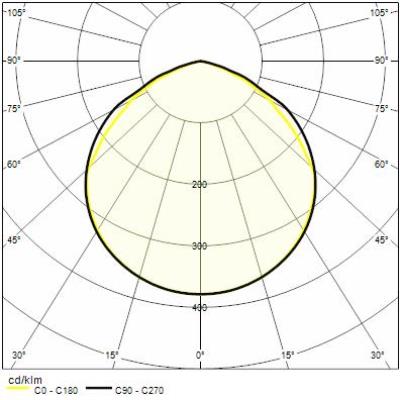

Photometry

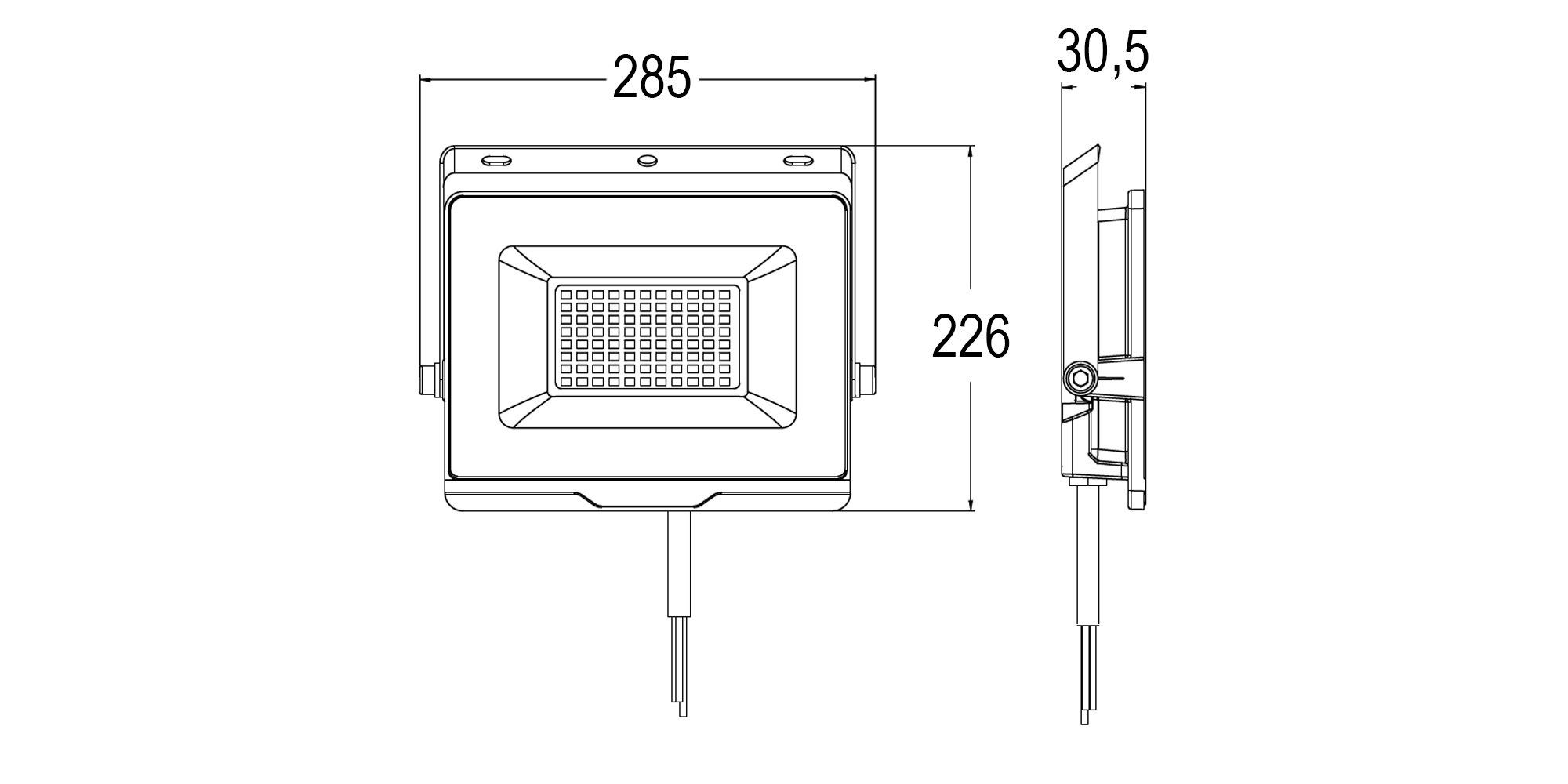

Technical drawing
Documentation
