Vela Mini

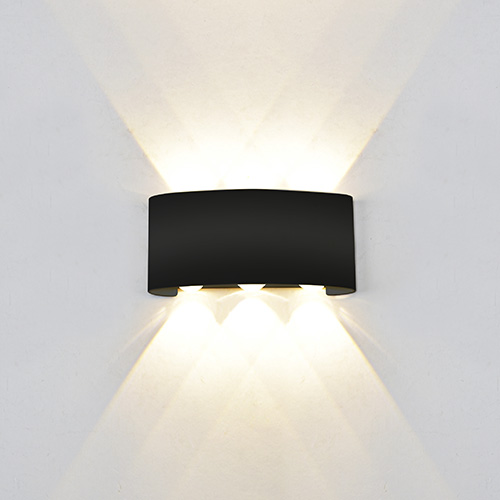

VELA MINI 6W IP54 3000K BLACK
Cod. 6361246
Add to wishlist
IP54
Protected against dust and splashes
I
Protection class I
CRI >80
Colour rendering index >80
CAM compliant
CAM (Minimum Environmental Criteria) compliant product for indoor and outdoor installation
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Product code: 6361246 | Category: Outdoor luminaires | Model: Appliques | Product description: VELA MINI 6W IP54 3000K BLACK | Source type: SMD | Color temperature (CCT): 3000K | Color render index (CRI): > 80 | MacAdam (SDCM): < 5 | Lumen output (lm): 565 | Beam angle: 120° | BUG Rating: Risk Group 1 (Low Risk) | LED Lifetime: L70 B50 50.000h | Energy efficiency class: This contains a light source of energy efficiency class (EU2019/2015): E | Width (mm): 170 | Length (mm): 80 | Height (mm): 40 | Weight (g): 500 | IP rating: IP54 | IK rating: IK03 | Finishing colour: Black RAL9005 | Body material: Aluminium | Diffuser material: Tempered glass | Maximal working temperature: +45° C | Minimal working temperature: -20° C | Nominal power (W): 6 | Power factor: > 0,8 | Power supply: 230V 50/60Hz | Ballast: Integrated | Insulation class: I | Dimmable: No |
Lighting data
|
Source type
SMD
|
|
Color temperature (CCT)
3000K
|
|
Color render index (CRI)
> 80
|
|
MacAdam (SDCM)
< 5
|
|
Lumen output (lm)
565
|
|
Beam angle
60° 120°
|
|
Photobiological risk
Risk Group 1 (Low Risk) Risk Group 1 (Low Risk)
|
|
LED Lifetime
L70 B50 50.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): E This contains a light source of energy efficiency class (EU2019/2015): E
|
Mechanical data
|
Width (mm)
170
|
|
Length (mm)
80
|
|
Height (mm)
40
|
|
Weight (g)
500
|
|
IP rating
IP54
|
|
IK rating
IK03
|
|
Finishing colour
Black RAL9005 Black RAL9005
|
|
Body material
Aluminium Aluminum
|
|
Diffuser material
Tempered glass Tempered glass
|
|
Maximal working temperature
+45° C
|
|
Minimal working temperature
-20° C
|
Electrical data
|
Nominal power (W)
6
|
|
Power factor
> 0,8
|
|
Power supply
230V 50/60Hz
|
|
Ballast
Integrated Integrated
|
|
Insulation class
I
|
|
Dimmable
No
|
|
Quantity per package
1
|
|
Total quantity per boxing
20
|
Marks

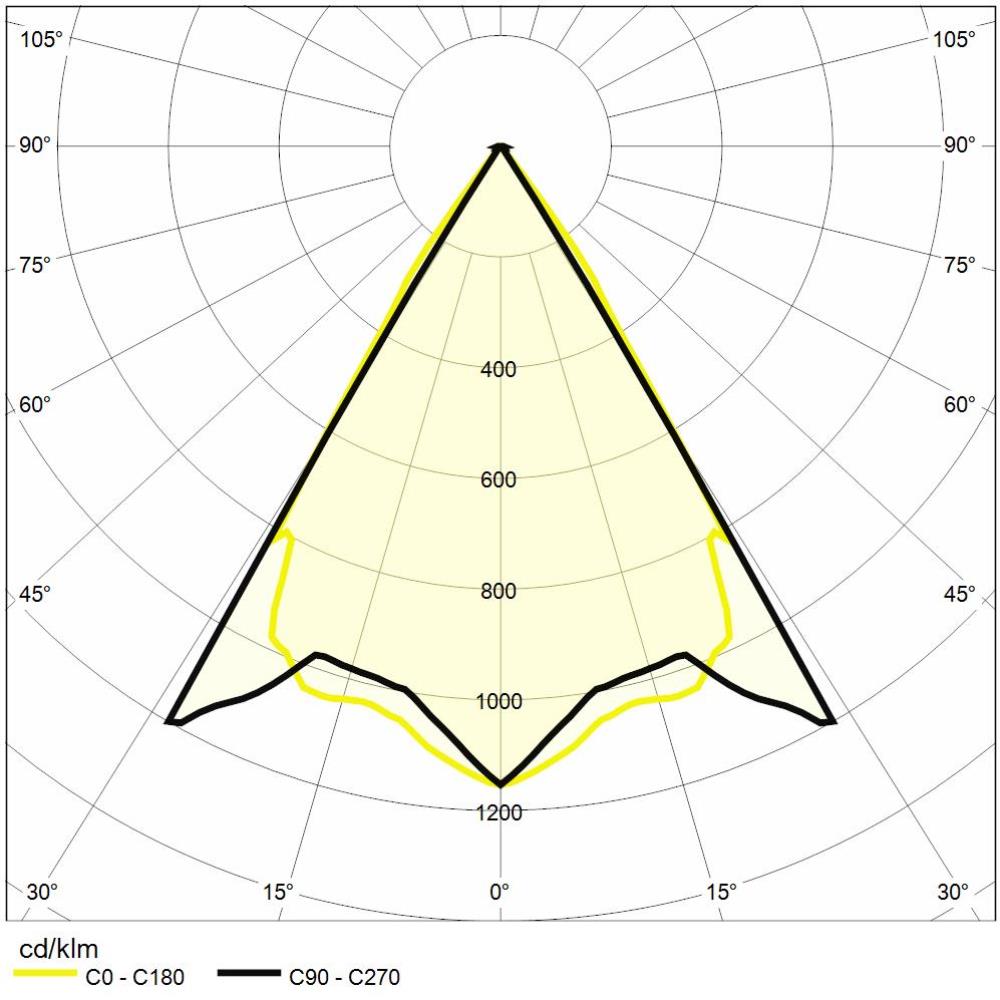

Photometry
Technical drawing
Documentation
