Appilique round CCT Multipower
APPLIQUE CCT ROUND 15/18/22W MULTIPOWER
Cod. 6361195
Add to wishlist
IP66
Dustproof and protected against waves
II
Protection class II
CRI >80
Colour rendering index >80
CAM compliant
CAM (Minimum Environmental Criteria) compliant product for indoor and outdoor installation
Multi-Power
Product with different power levels settable via switch
Variable CCT
Selectable colour temperature
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Product code: 6361195 | Category: Outdoor luminaires | Model: Appliques | Product description: APPLIQUE CCT ROUND 15/18/22W MULTIPOWER | Source type: SMD | Color temperature (CCT): 3000 / 4000 / 6000K | Color render index (CRI): > 80 | MacAdam (SDCM): > 6 | Lumen output (lm): 15W = 1500/1650/2100 | 18W = 1500/1750/2100 | 22W = 1650/1950/2350 | Beam angle: 115° | BUG Rating: Risk Group 1 (Low Risk) | LED Lifetime: L70 B50 50.000h | Energy efficiency class: This contains a light source of energy efficiency class (EU2019/2015): E | Diameter (mm): 320 | Length (mm): | Height (mm): 78 | Weight (g): 800 | IP rating: IP 66 | IK rating: IK10 | Finishing colour: Bianco RAL9003 | Body material: PC (policarbonato) | Maximal working temperature: +50° C | Minimal working temperature: -20°C | Power factor: 15/18/22 | Power supply: >0,8 | Ballast: 230V 50/60Hz | Insulation class: Included | Dimmable: II | Plug: No |
Lighting data
|
Source type
SMD SMD
|
|
Color temperature (CCT)
3000 / 4000 / 6000K
|
|
Color render index (CRI)
> 80 > 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
15W = 1500/1650/2100 18W = 1500/1750/2100 22W = 1650/1950/2350
|
|
Beam angle
115°
|
|
Photobiological risk
Risk Group 1 (Low Risk) Risk Group 1 (Low Risk)
|
|
LED Lifetime
L70 B50 50.000h L70 B50 50.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): E
|
Mechanical data
|
Diameter (mm)
320
|
|
Height (mm)
78
|
|
Weight (g)
800
|
|
IP rating
IP 66
|
|
IK rating
IK10
|
|
Finishing colour
White RAL9003 White RAL9003
|
|
Body material
PC (polycarbonate)
|
|
Maximal working temperature
+50° C
|
|
Minimal working temperature
-20° C
|
Electrical data
|
Nominal power (W)
15/18/22
|
|
Power factor
> 0,8 > 0,8
|
|
Power supply
230V 50/60Hz 230V 50/60Hz
|
|
Ballast
Included Included
|
|
Insulation class
II
|
|
Dimmable
No
|
|
Quantity per package
1
|
|
Total quantity per boxing
10
|
Marks

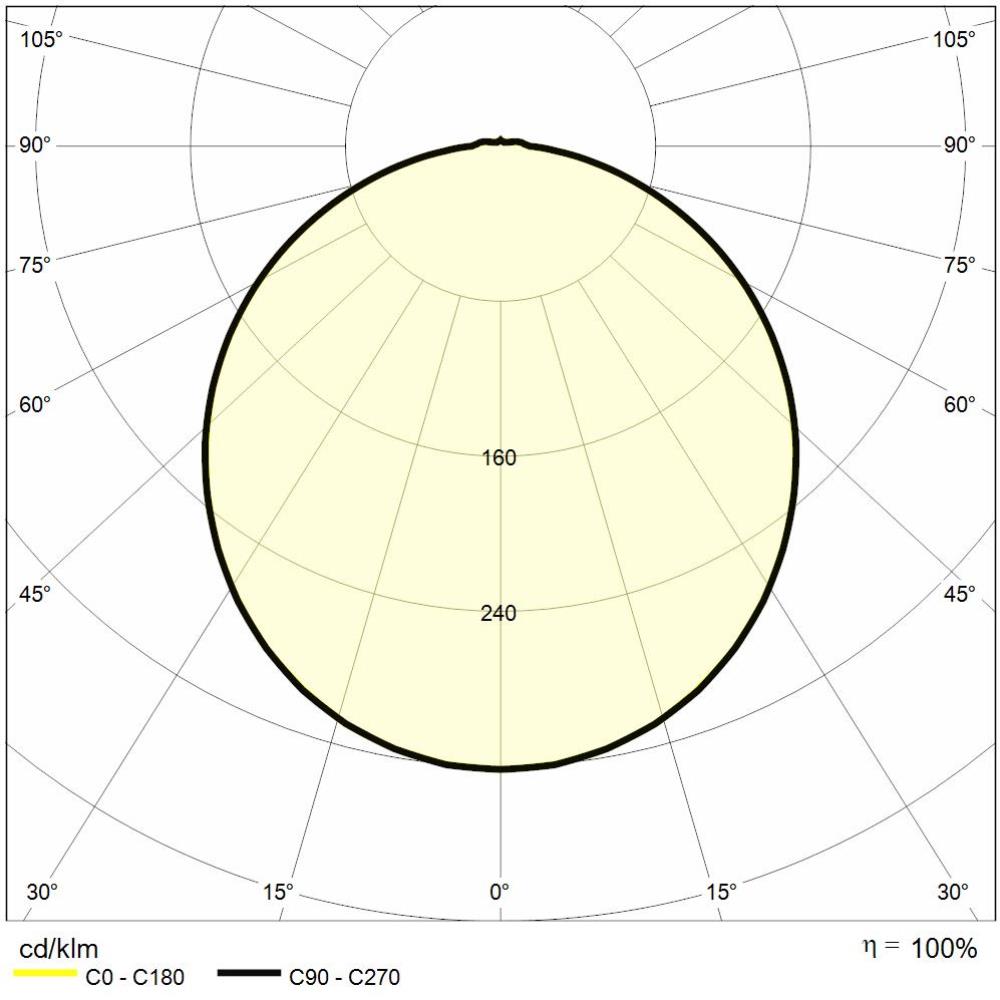

Photometry

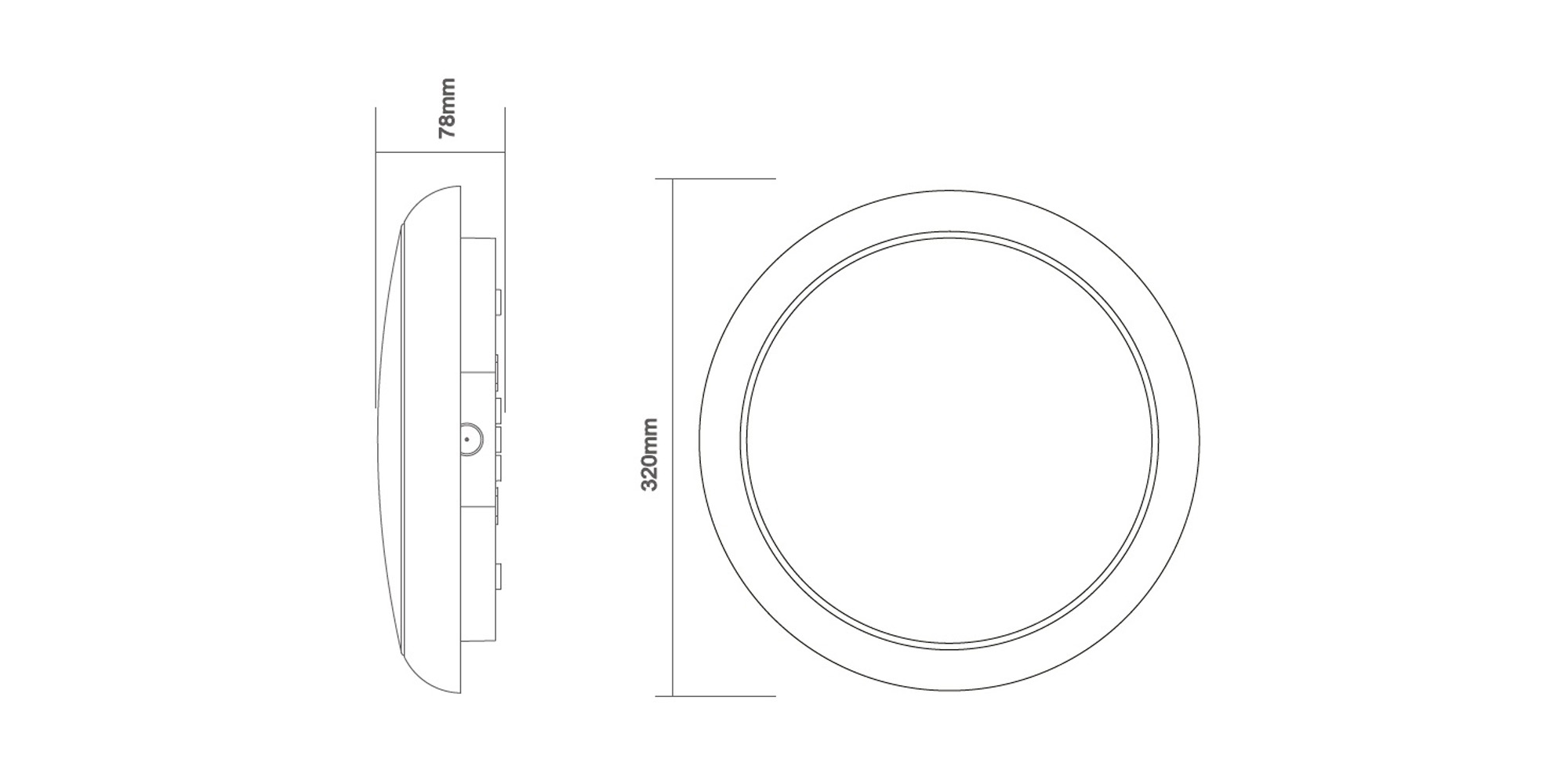

Technical drawing
