Backlit LED 600×600
BACKLIT PANEL LED 595x595mm 36W IP20 4000K CRI80
Cod. 6361212
IP20
Protected from solid bodies larger than 12 mm
II
Protection class II
CRI >80
Colour rendering index >80
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Product code: 6361212 | Category: Indoor luminaires | Model: Recessed panels | Product description: BACKLIT PANEL LED 595x595mm 36W IP20 4000K CRI80 | Source type: SMD | Color temperature (CCT): 4000K | Color render index (CRI): > 80 | MacAdam (SDCM): > 5 | Lumen output (lm): 3600 | Beam angle: 120° | BUG Rating: Risk Group 0 (exempt) | LED Lifetime: L70 B30 25.000h | Energy efficiency class: This contains a light source of energy efficiency class (EU2019/2015): D | Width (mm): 595 | Length (mm): 595 | Height (mm): 32 | Weight (g): 1200 | IP rating: IP 20 | IK rating: IK02 | Finishing colour: Bianco RAL9003 | Body material: Ferro | Diffuser material: PS (polistirene) | Maximal working temperature: +40° C | Minimal working temperature: -10°C | Power factor: 36 | Power supply: >0,9 | Ballast: 230V 50/60Hz | Insulation class: Included | Dimmable: II | Plug: No |
Lighting data
|
Source type
SMD
|
|
Color temperature (CCT)
4000K
|
|
Color render index (CRI)
> 80
|
|
MacAdam (SDCM)
< 5
|
|
Lumen output (lm)
3600
|
|
Beam angle
120°
|
|
Photobiological risk
Risk Group 0 (exempt)
|
|
LED Lifetime
L70 B30 25.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): D
|
Mechanical data
|
Width (mm)
595
|
|
Length (mm)
595
|
|
Height (mm)
32
|
|
Weight (g)
1200
|
|
IP rating
IP 20
|
|
IK rating
IK02
|
|
Finishing colour
White RAL9003
|
|
Body material
Iron
|
|
Diffuser material
PS (polystyrene)
|
|
Maximal working temperature
-40° C
|
|
Minimal working temperature
-10°C
|
Electrical data
|
Nominal power (W)
36
|
|
Power factor
0,9
|
|
Power supply
230V 50/60Hz
|
|
Ballast
Included
|
|
Insulation class
II
|
|
Dimmable
No
|
Marks

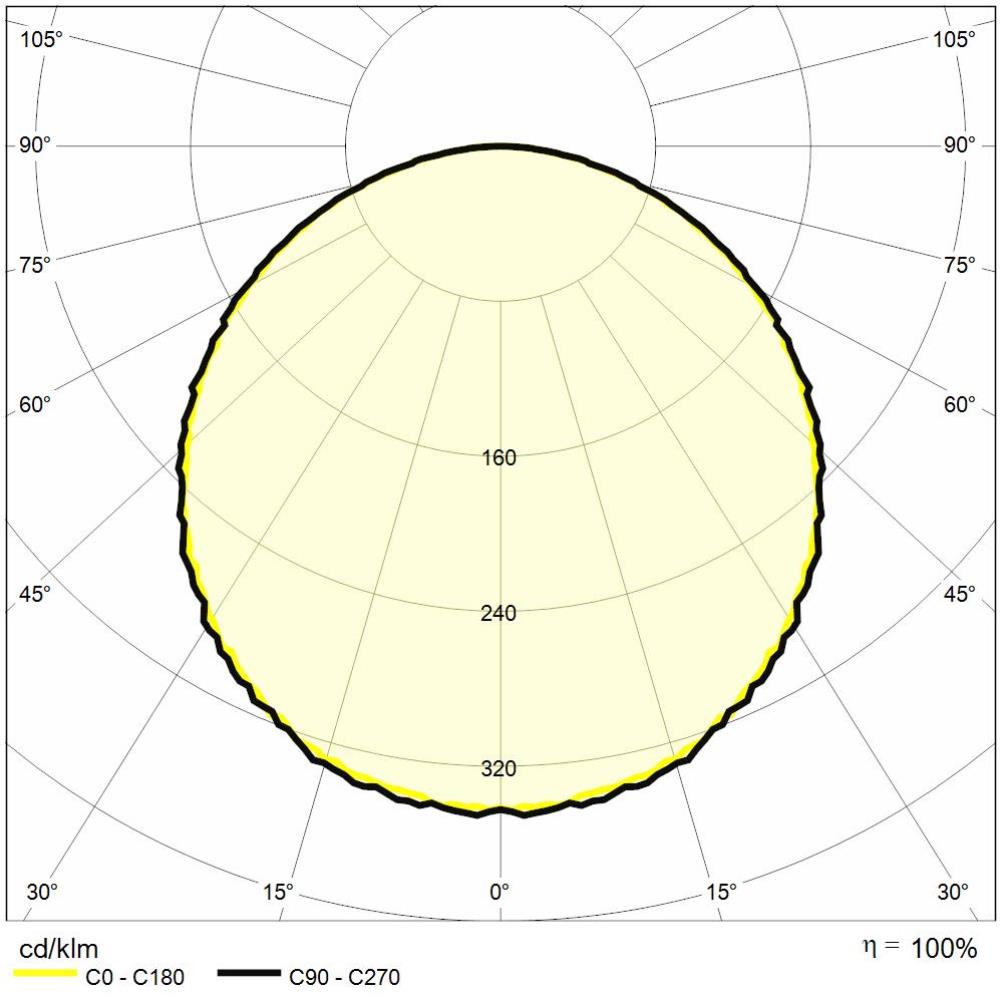

Photometry

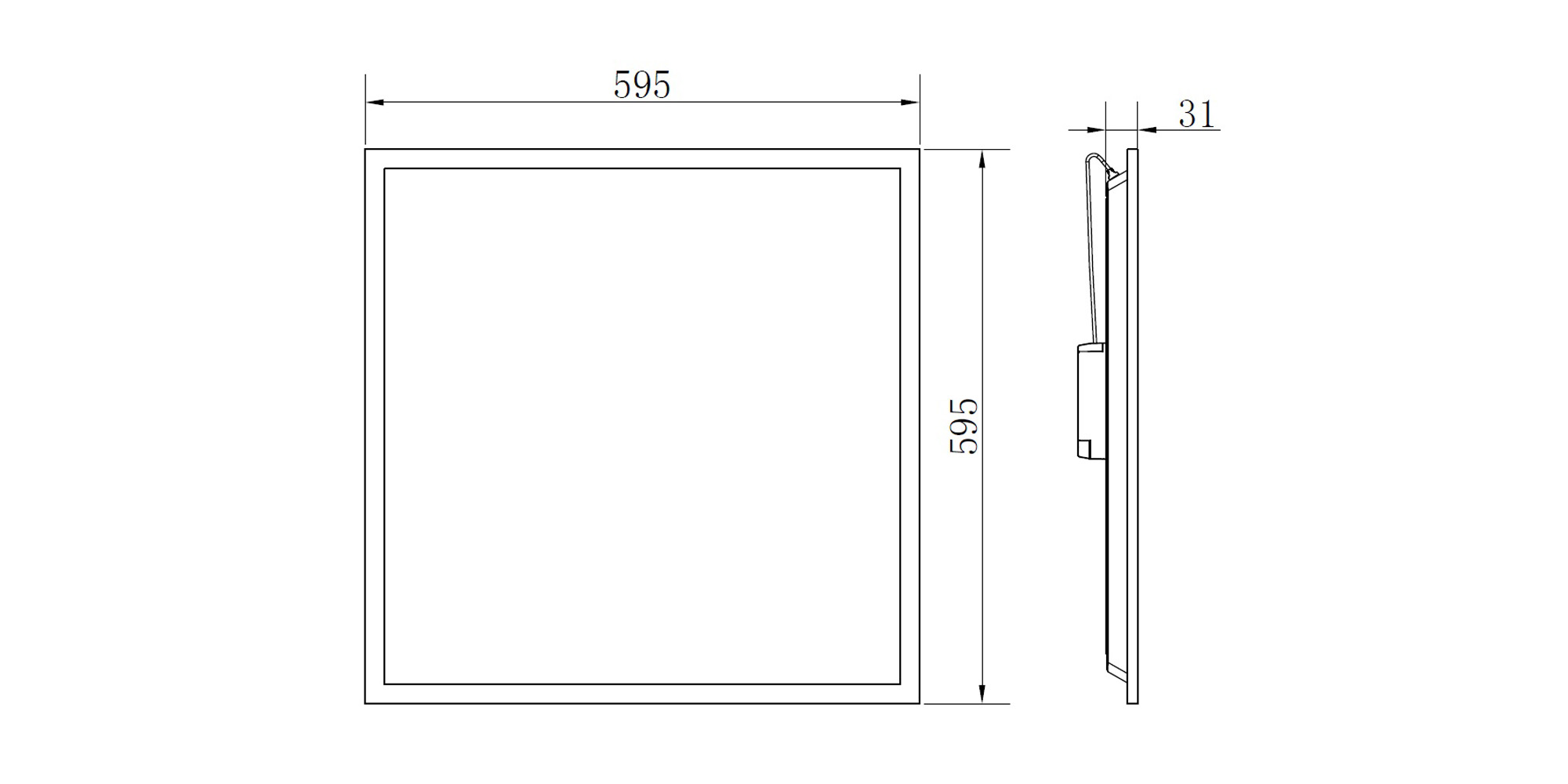

Technical drawing
