Domino 2.0 CCT 10W
DOMINO 2.0 CCT 10W 230V IP65 3000/4000/5000K
Cod. 6361203
Add to wishlist
IP65
Dustproof and protected against water jets
I
Protection class I
CRI >80
Colour rendering index >80
CAM compliant
CAM (Minimum Environmental Criteria) compliant product for indoor and outdoor installation
Variable CCT
Selectable colour temperature
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
High-performance LED floodlight for professional and industrial applications. Selectable 3000K / 4000K / 5000K CCT technology for maximum application flexibility. Robust IP65 construction, ideal for outdoor use, production areas, and large spaces.
Lighting data
|
Source type
SMD
|
|
Color temperature (CCT)
3000 / 4000 / 5000K
|
|
Color render index (CRI)
> 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
1200 / 1350 / 1300
|
|
Beam angle
110°
|
|
Photobiological risk
Risk Group 1 (Low Risk) Risk Group 1 (Low Risk)
|
|
LED Lifetime
L70 B50 50.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): C
|
Mechanical data
|
Width (mm)
138
|
|
Length (mm)
141
|
|
Height (mm)
29
|
|
Weight (g)
434
|
|
IP rating
IP 65
|
|
IK rating
IK07
|
|
Type of finishing
Polyester powder coated Polyester powder coated
|
|
Finishing colour
Black RAL7021
|
|
Body material
Aluminum Aluminum
|
|
Diffuser material
Tempered glass
|
|
Maximal working temperature
+50° C
|
|
Minimal working temperature
-20° C
|
Electrical data
|
Nominal power (W)
10
|
|
Power factor
0,7
|
|
Power supply
230V 50/60Hz
|
|
Ballast
Integrated Integrated
|
|
Insulation class
I
|
|
Dimmable
No
|
|
Quantity per package
1
|
|
Total quantity per boxing
10
|
Marks

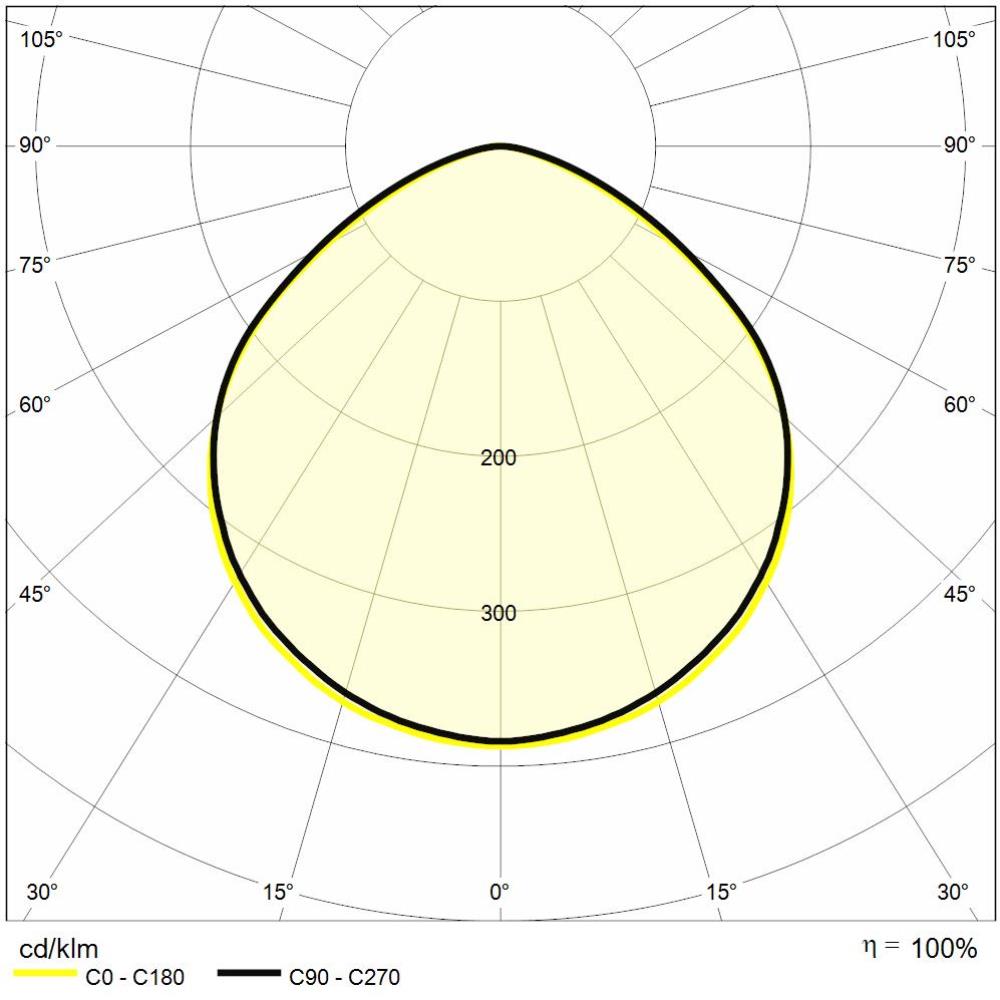

Photometry

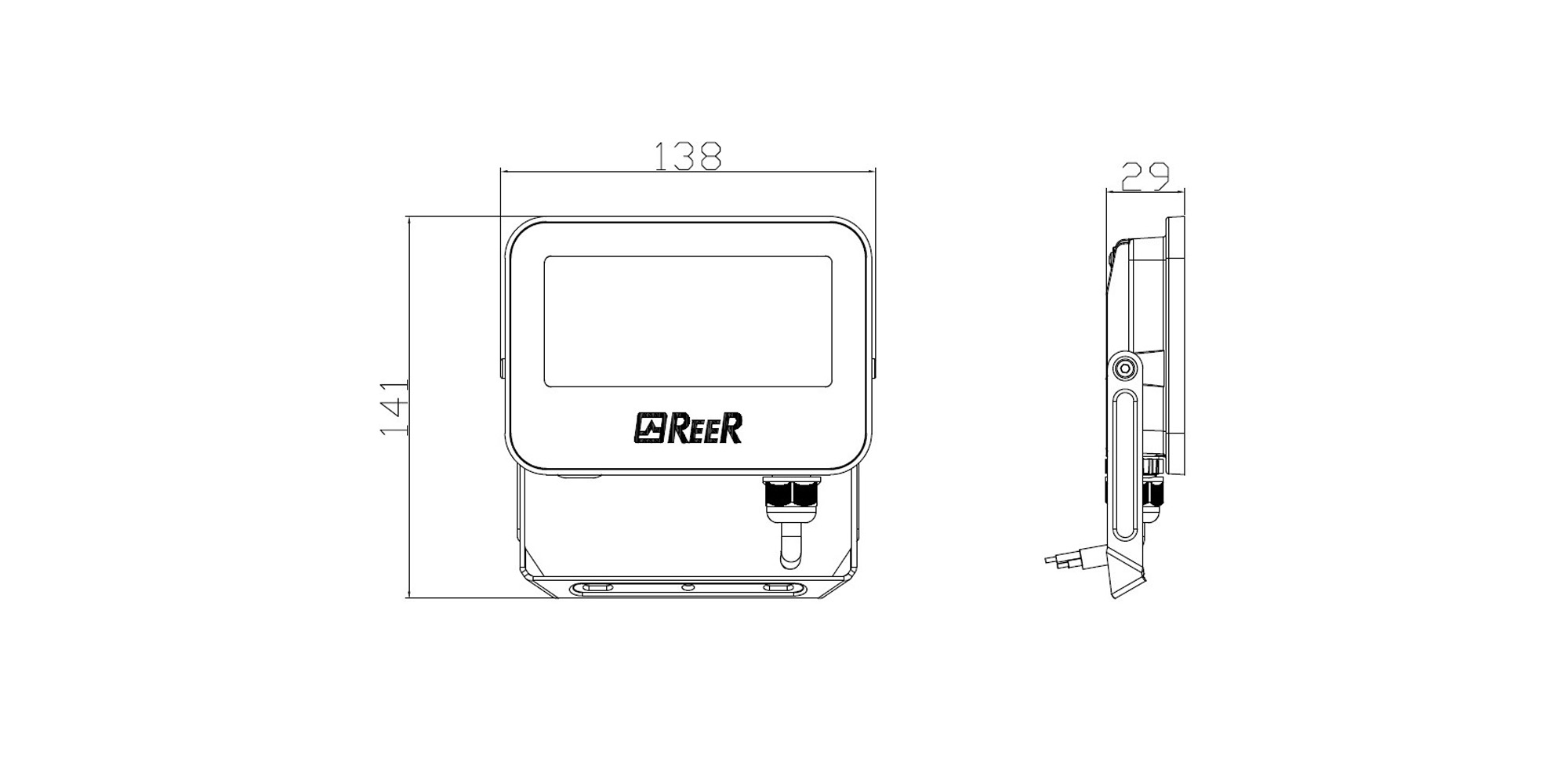

Technical drawing
