E.T. Model Ceiling Light 3CCT IP54 Multipower 32/24/18W
Cod. 6361422
Add to wishlist
IP54
Protected against dust and splashes
II
Protection class II
CRI >80
Colour rendering index >80
Multi-Power
Product with different power levels settable via switch
Variable CCT
Selectable colour temperature
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
A versatile and durable ceiling light (IP54-rated for protection against dust and water splashes), suitable for damp environments, stairwells, or covered outdoor areas. It offers a dual configuration: a 3CCT selector for color temperature and a Multipower driver to adjust power consumption to different settings.
Lighting data
|
Source type
SMD
|
|
MacAdam (SDCM)
< 1
|
|
Ignition time
0,4
|
|
Color temperature (CCT)
3000 / 4000 / 6000K
|
|
Color render index (CRI)
> 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
32W = 2500/2700/2600 16W = 1400/1500/1450 24W = 2000/2100/2050
|
|
Beam angle
120°
|
|
Photobiological risk
Risk Group 0 (exempt)
|
|
LED Lifetime
L70 B50 30.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): E
|
Mechanical data
|
Diameter (mm)
370
|
|
Height (mm)
64
|
|
Weight (g)
600
|
|
IP rating
IP 54
|
|
IK rating
IK 02
|
|
Finishing colour
White RAL9003
|
|
Body material
PC (polycarbonate)
|
|
Diffuser material
Polycarbonate
|
|
Maximal working temperature
+45° C
|
|
Minimal working temperature
-20° C
|
Electrical data
|
Nominal power (W)
16 / 24 / 32
|
|
Power factor
> 0,9
|
|
Power supply
230V 50/60Hz
|
|
Ballast
Integrated
|
|
Insulation class
II
|
|
Dimmable
No
|
|
Quantity per package
1
|
|
Total quantity per boxing
10
|
Marks

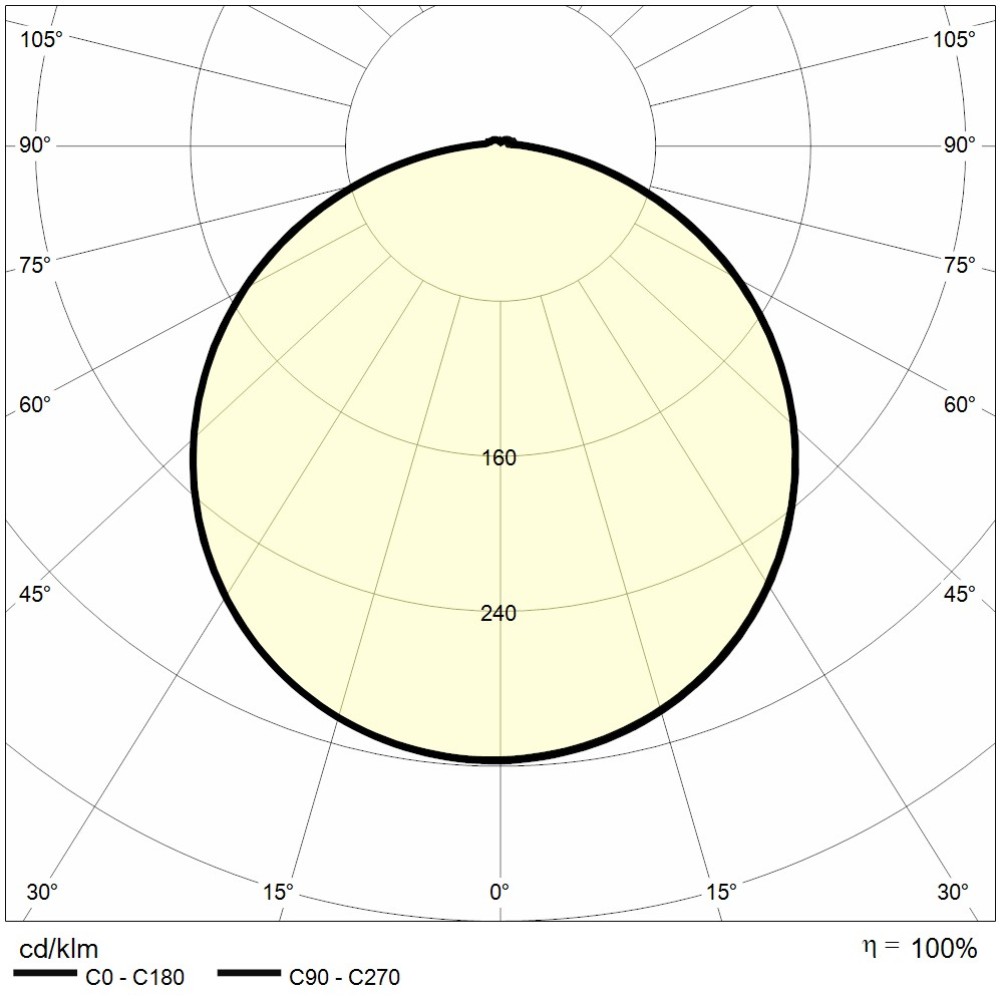

Photometry

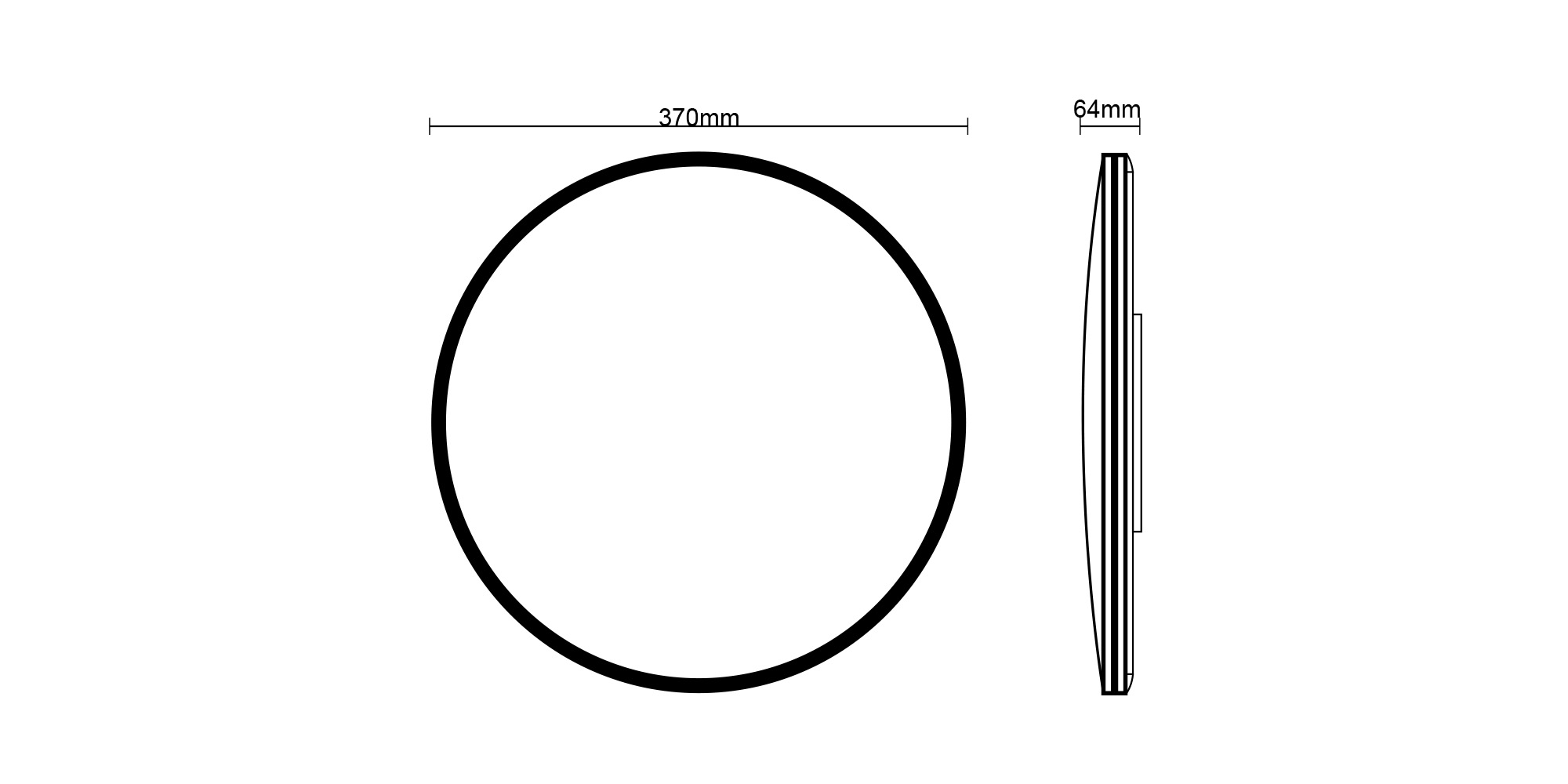

Technical drawing
