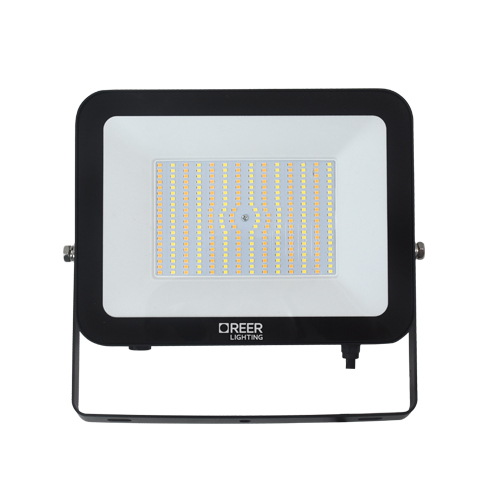

Force CCT 100W
Force 3CCT 100W 230V IP65
Cod. 6361392
Add to wishlist
IP65
Dustproof and protected against water jets
I
Protection class I
CRI >80
Colour rendering index >80
Variable CCT
Selectable colour temperature
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Outdoor floodlight with IP65 protection and variable CCT system for quick selection of the desired light color.
It combines a compact, weather-resistant body with optimal lighting performance for facades or traffic areas. Ideal for illuminating large squares and gardens, it offers great reliability and lighting versatility.
Lighting data
|
Source type
SMD
|
|
MacAdam (SDCM)
< 1
|
|
Ignition time
0,4
|
|
Color temperature (CCT)
3000 / 4000 / 6500K
|
|
Color render index (CRI)
> 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
8600 / 9800 / 8400
|
|
Beam angle
110°
|
|
Photobiological risk
Risk Group 1 (Low Risk) Risk Group 1 (Low Risk)
|
|
LED Lifetime
L70 B50 20.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): F
|
Mechanical data
|
Width (mm)
38
|
|
Length (mm)
260
|
|
Height (mm)
210
|
|
Weight (g)
1045
|
|
IP rating
IP 65
|
|
IK rating
IK 05
|
|
Finishing colour
Black RAL9005 Black RAL9005
|
|
Body material
Aluminum Aluminum
|
|
Diffuser material
Tempered glass
|
|
Maximal working temperature
+45° C
|
|
Minimal working temperature
-30° C
|
Electrical data
|
Nominal power (W)
100
|
|
Power factor
> 0,9
|
|
Power supply
230V 50/60Hz
|
|
Ballast
Integrated Integrated
|
|
Insulation class
I
|
|
Dimmable
No
|
|
Quantity per package
1
|
|
Total quantity per boxing
10
|
Marks

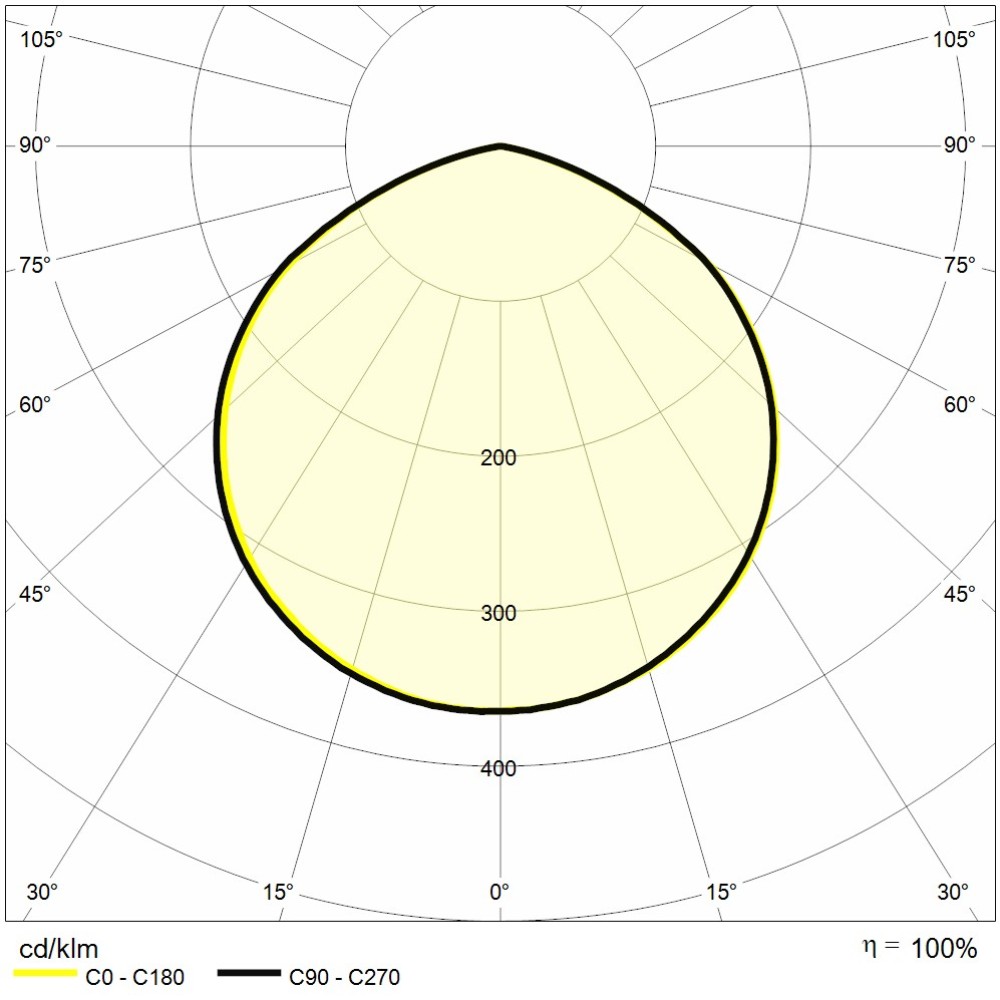

Photometry

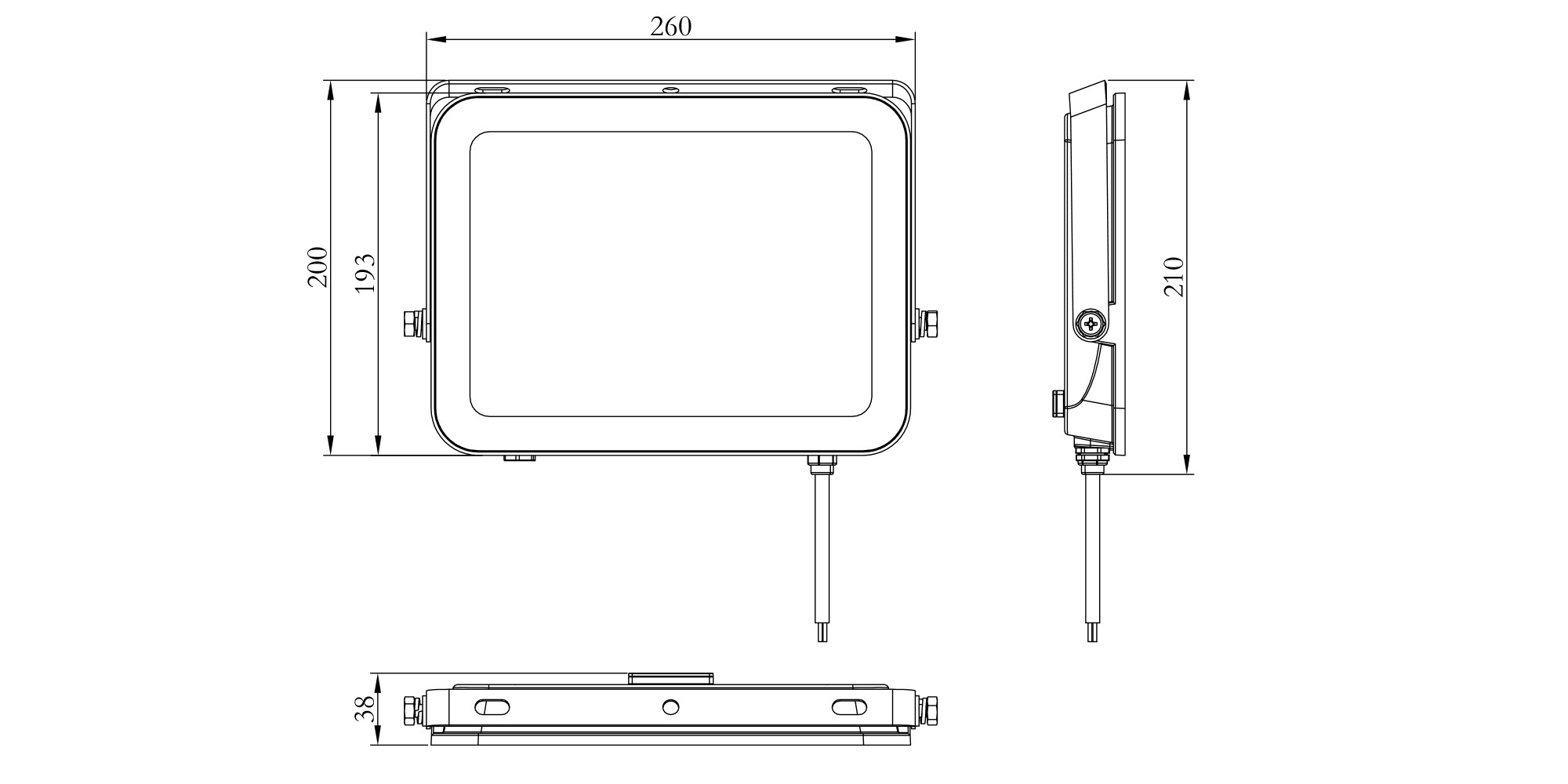

Technical drawing
