High bay

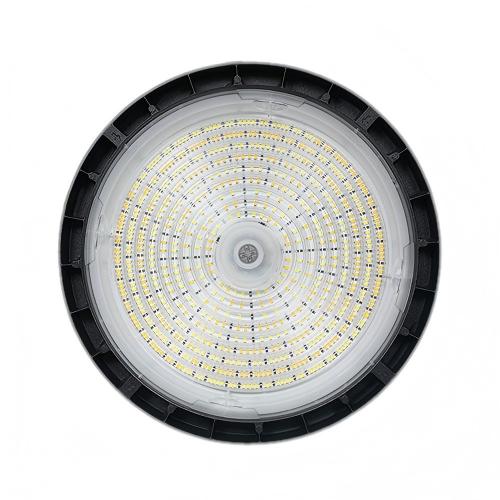

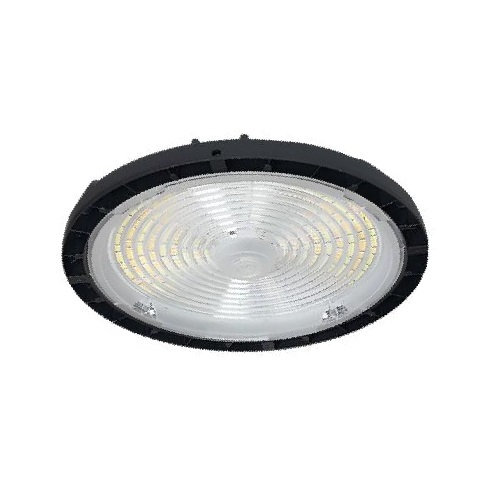

Multipower High Bay Light 120/160/200W 4000K
Cod. 6361450
Add to wishlist
IP65
Dustproof and protected against water jets
I
Protection class I
Multi-Power
Product with different power levels settable via switch
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
High-performance industrial floodlight with neutral light (4000K), designed for warehouses, production areas, and high-ceiling installations. The integrated Multipower driver allows the fixture's power output to be adjusted in three steps (120W, 160W, or 200W) directly on-site, optimizing energy consumption based on actual lighting requirements. A versatile and durable ceiling light (IP54-rated for protection against dust and water splashes), suitable for damp environments, stairwells, or covered outdoor areas. It offers dual configuration options: a 3CCT selector for color temperature and a Multipower driver to adjust power consumption settings.
Lighting data
|
Source type
SMD
|
|
MacAdam (SDCM)
< 1
|
|
Color temperature (CCT)
4000K
|
|
Color render index (CRI)
> 70
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
200W = 32000 160W = 25600 120W = 19200
|
|
Beam angle
60° / 90° / 120°
|
|
Photobiological risk
Risk Group 1 (Low Risk)
|
|
LED Lifetime
L70 B50 50.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): B
|
Mechanical data
|
Diameter (mm)
325
|
|
Height (mm)
122
|
|
Weight (g)
2120
|
|
IP rating
IP 65
|
|
IK rating
IK 08
|
|
Finishing colour
Black RAL9005
|
|
Body material
Aluminum
|
|
Diffuser material
Polycarbonate
|
|
Maximal working temperature
+40° C
|
|
Minimal working temperature
-20° C
|
Electrical data
|
Nominal power (W)
200 / 160 / 120
|
|
Power factor
> 0,9
|
|
Power supply
230V 50/60Hz
|
|
Ballast
Integrated
|
|
Insulation class
I
|
|
Dimmable
No
|
|
Quantity per package
1
|
|
Total quantity per boxing
1
|
Marks

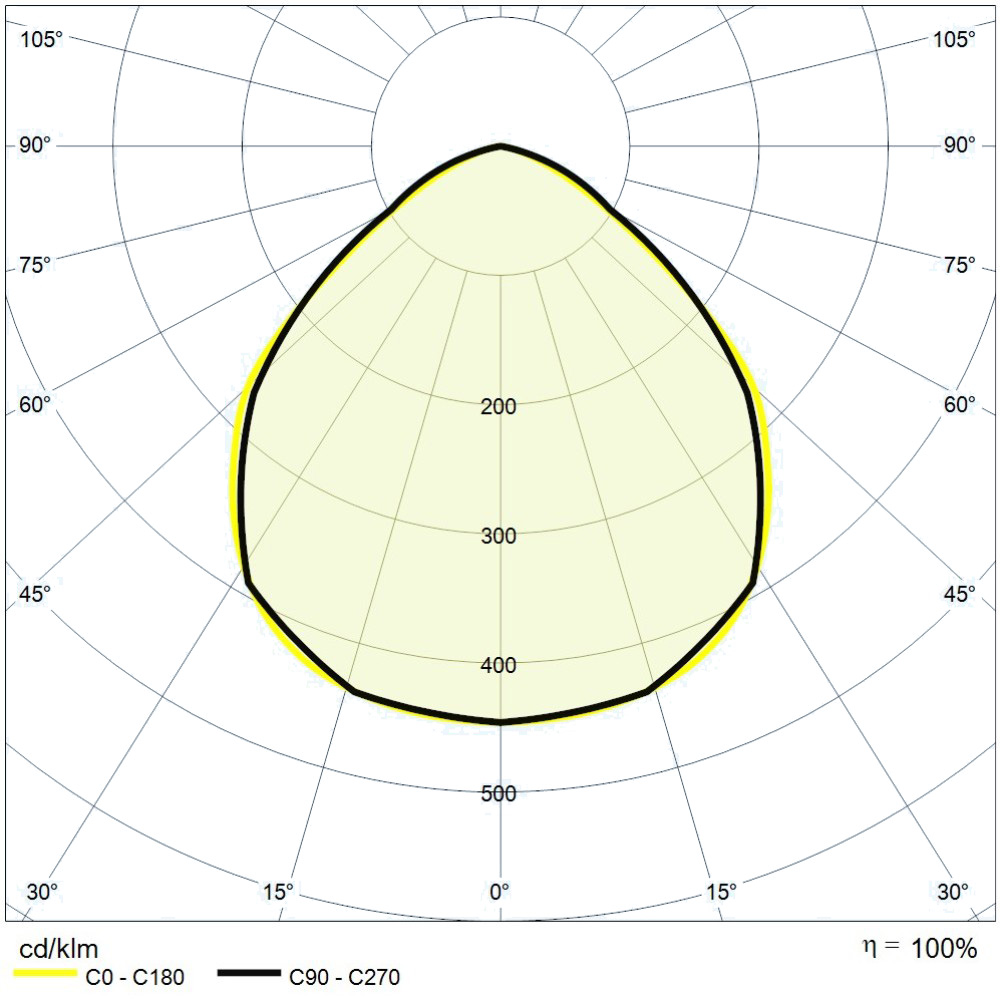

Photometry

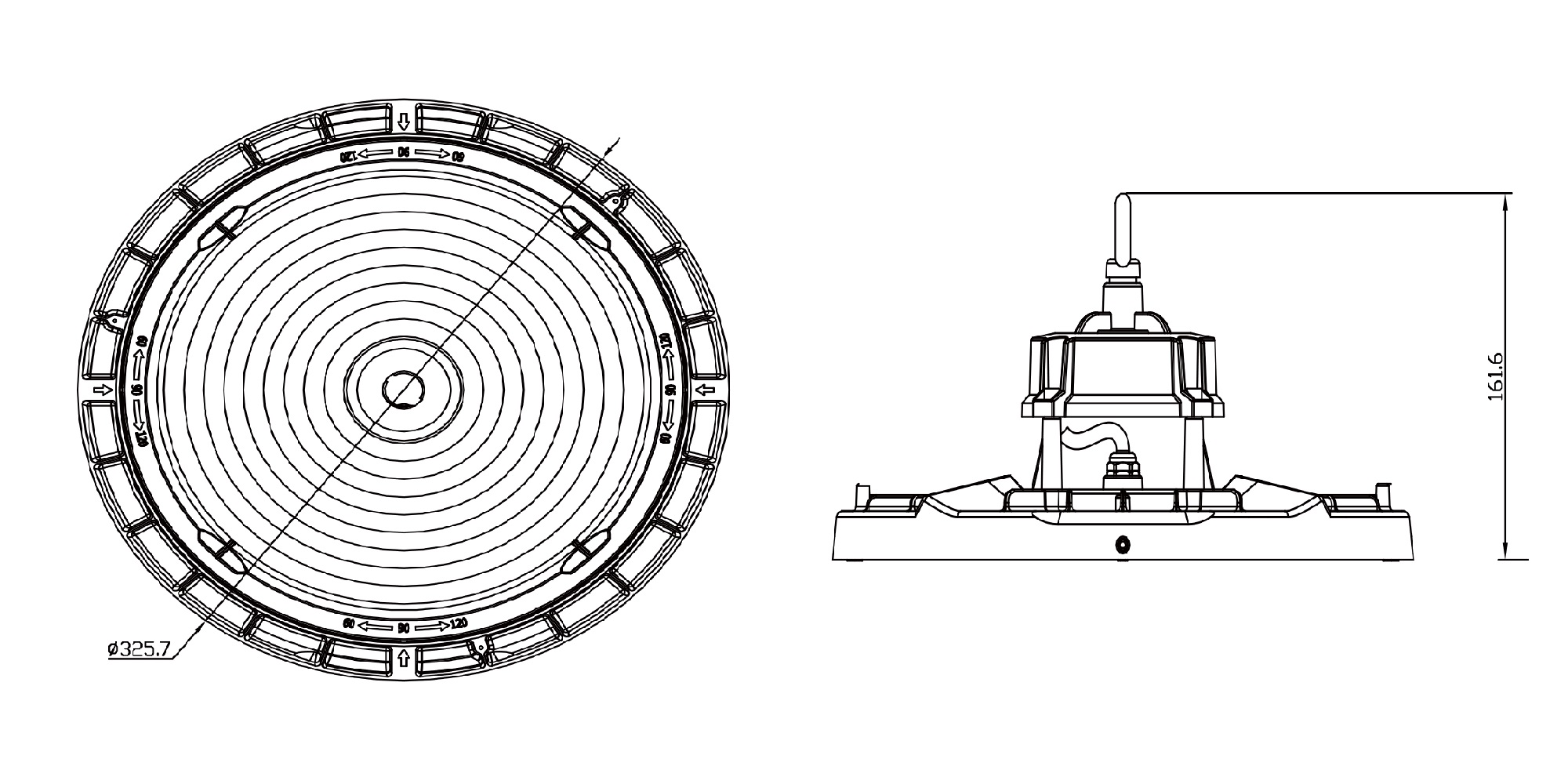

Technical drawing
Documentation
