Look round CCT
LOOK CCT DIMMABLE 4W WHITE 36° IP44 TILTABLE CCT
Cod. 6361191
IP44
Protected against solid objects larger than 1 mm and splashes
II
Protection class II
CRI >80
Colour rendering index >80
Dimmable
Dimmable product
Variable CCT
Selectable colour temperature
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Product code: 6361191 | Category: Indoor luminaires | Model: Downlights | Product description: LOOK CCT DIMMABLE 4W WHITE 36° IP44 TILTABLE CCT | Source type: SMD | Color temperature (CCT): 3000 / 4000 / 6500K | Color render index (CRI): > 80 | MacAdam (SDCM): > 6 | Lumen output (lm): 420 / 480 / 440 | Beam angle: 36° | BUG Rating: Risk Group 1 (Low Risk) | LED Lifetime: L70 B50 25.000h | Energy efficiency class: This contains a light source of energy efficiency class (EU2019/2015): E | Diameter (mm): 80 | Height (mm): 32 | Weight (g): 940 | IP rating: IP 44 (inferiore) | IK rating: IK02 | Finishing colour: Bianco RAL9003 | Type of finishing: Verniciato a polveri di poliestere | Body material: Alluminio | Diffuser material: PC (policarbonato) | Maximal working temperature: +40° C | Minimal working temperature: -20°C | Power factor: 4 | Power supply: >0,7 | Ballast: 230V 50/60Hz | Insulation class: Included | Dimmable: II | Plug: Yes |
Lighting data
|
Source type
SMD
|
|
Color temperature (CCT)
3000 / 4000 / 6500K
|
|
Color render index (CRI)
> 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
420 / 480 / 440
|
|
Beam angle
36°
|
|
Photobiological risk
Risk Group 1 (Low Risk)
|
|
LED Lifetime
L70 B50 25.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): E
|
Mechanical data
|
Height (mm)
32
|
|
Weight (g)
940
|
|
IP rating
IP 44 (below)
|
|
IK rating
IK02
|
|
Type of finishing
Polyester powder coated
|
|
Finishing colour
White RAL9003
|
|
Body material
Aluminum
|
|
Diffuser material
PC (polycarbonate)
|
|
Maximal working temperature
-40° C
|
|
Minimal working temperature
-20°C
|
Electrical data
|
Nominal power (W)
4
|
|
Power factor
0,7
|
|
Power supply
230V 50/60Hz
|
|
Ballast
Included
|
|
Insulation class
II
|
|
Dimmable
Yes
|
Marks

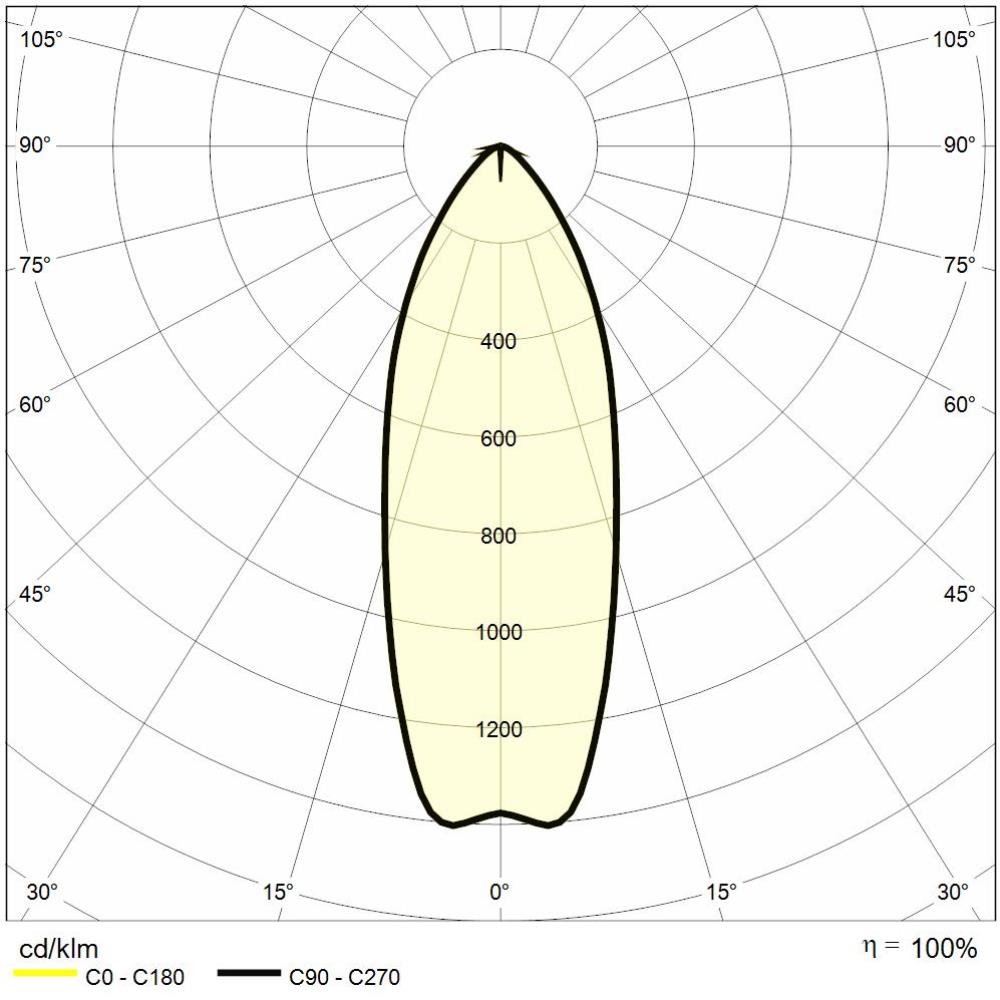

Photometry
Technical drawing
