Miniled III – 313mm
MINILED III 5W 3000K 313x22x30mm
Cod. 6360783
IP20
Protected from solid bodies larger than 12 mm
II
Protection class II
CRI >80
Colour rendering index >80
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Product code: 6360783 | Category: Indoor luminaires | Model: Miniled III - 313mm | Product description: MINILED III 5W 3000K 313x22x30mm | Source type: SMD 2835 | Number of LEDs: 50 | Color temperature (CCT): 3000K | Color render index (CRI): > 80 | MacAdam (SDCM): < 6 | Lumen output (lm): 500 | Beam angle: 150° | Photobiological risk: RG0 (exempt) | LED Lifetime: 25.000 h | Energy efficiency class: This contains a light source of energy efficiency class (EU2019/2015): E | Width (mm): 313 | Length (mm): 22 | Height (mm): 30 | Weight (g): 85 | IP rating: IP 20 | Finishing colour: White | Body material: PC (polycarbonate) | Diffuser material: PC (polycarbonate) | Maximal working temperature: -20° C | Minimal working temperature: +50° C | Nominal power (W): 5 | Power factor: > 0,5 | Power supply: 230V 50/60Hz | Ballast: Integrated | Insulation class: II | Dimmable: No |
Lighting data
|
Source type
SMD 2835
|
|
Number of LEDs
50
|
|
Color temperature (CCT)
3000K
|
|
Color render index (CRI)
> 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
500
|
|
Beam angle
150°
|
|
Photobiological risk
RG0 (exempt)
|
|
LED Lifetime
25.000 h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): E
|
Mechanical data
|
Width (mm)
313
|
|
Length (mm)
22
|
|
Height (mm)
30
|
|
Weight (g)
85
|
|
IP rating
IP 20
|
|
Finishing colour
White
|
|
Body material
PC (polycarbonate)
|
Electrical data
|
Nominal power (W)
5
|
|
Power factor
0,5
|
|
Power supply
230V 50/60Hz
|
|
Ballast
Integrated
|
|
Insulation class
II
|
|
Dimmable
No
|
Marks

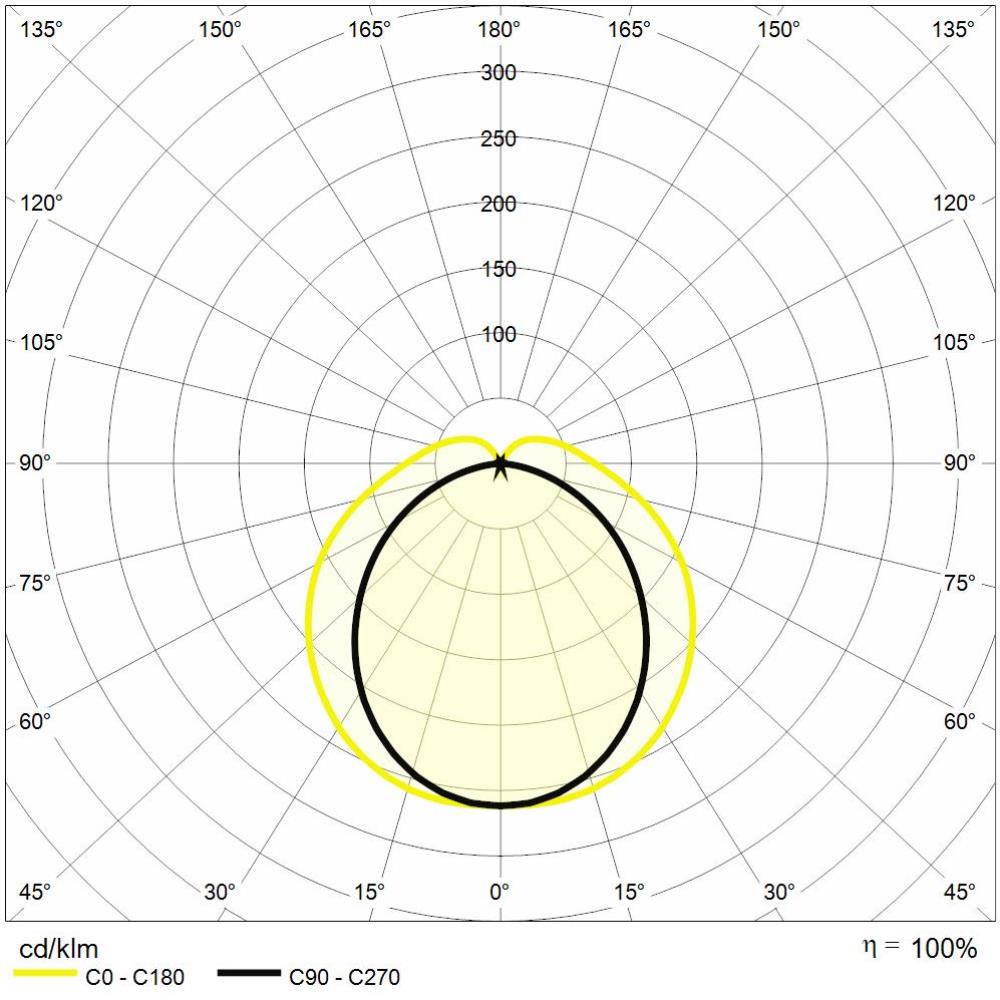

Photometry

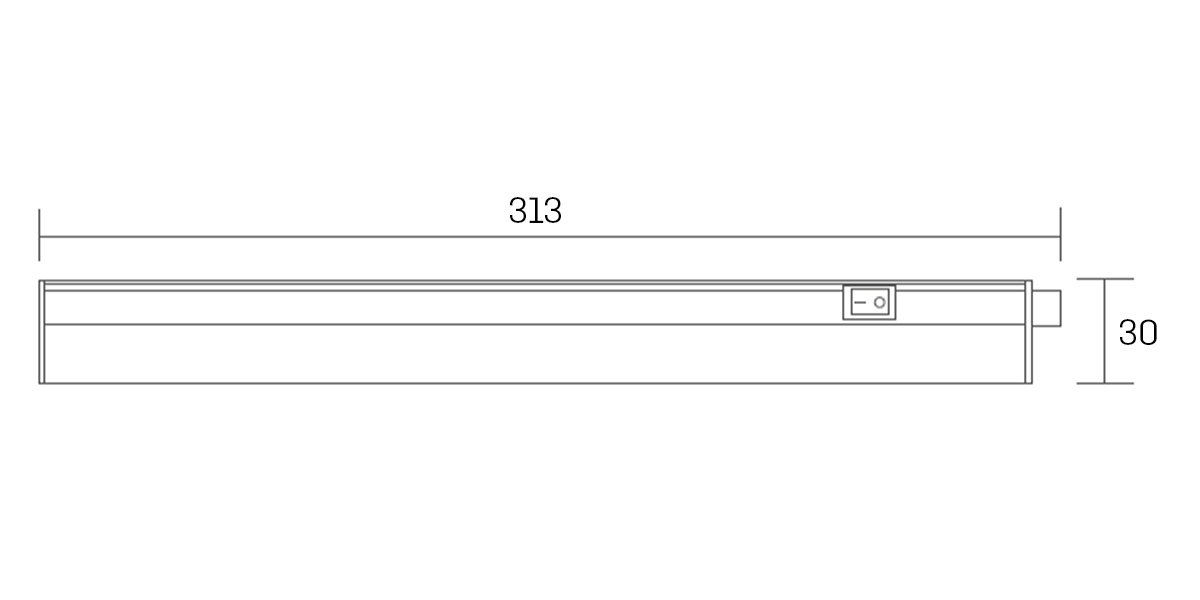

Technical drawing
