Sottopensile CCT

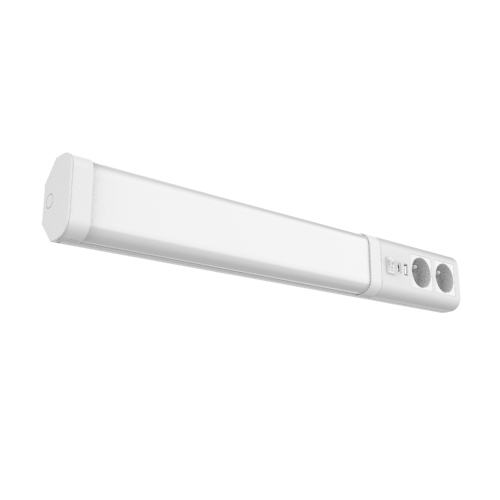

Under-cabinet light 7W USB-A/C 3CCT
Cod. 6361379
Add to wishlist
IP20
Protected from solid bodies larger than 12 mm
I
Protection class I
CRI >80
Colour rendering index >80
Variable CCT
Selectable colour temperature
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Compact under-cabinet light, ideal for precision lighting on work surfaces and in kitchens. It features 3CCT technology, allowing the desired color temperature to be selected during installation, and includes convenient integrated USB ports (Type-A and Type-C) for direct device charging.
Lighting data
|
Source type
SMD
|
|
MacAdam (SDCM)
< 1
|
|
Ignition time
0,4
|
|
Color temperature (CCT)
3000 / 4000 / 6000K
|
|
Color render index (CRI)
> 80
|
|
MacAdam (SDCM)
< 5
|
|
Lumen output (lm)
708 / 770 / 770
|
|
Beam angle
120°
|
|
Photobiological risk
Risk Group 1 (Low Risk)
|
|
LED Lifetime
L70 B50 50.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): C
|
Mechanical data
|
Width (mm)
74
|
|
Length (mm)
550
|
|
Height (mm)
49
|
|
Weight (g)
640
|
|
IP rating
IP 21
|
|
IK rating
IK 06
|
|
Finishing colour
White RAL9003
|
|
Body material
Steel sheet
|
|
Diffuser material
Polycarbonate
|
|
Maximal working temperature
+40° C
|
|
Minimal working temperature
-20° C
|
Electrical data
|
Nominal power (W)
7
|
|
Power factor
> 0,5
|
|
Power supply
230V 50/60Hz
|
|
Ballast
Integrated
|
|
Insulation class
I
|
|
Dimmable
No
|
|
Quantity per package
1
|
|
Total quantity per boxing
12
|
Marks

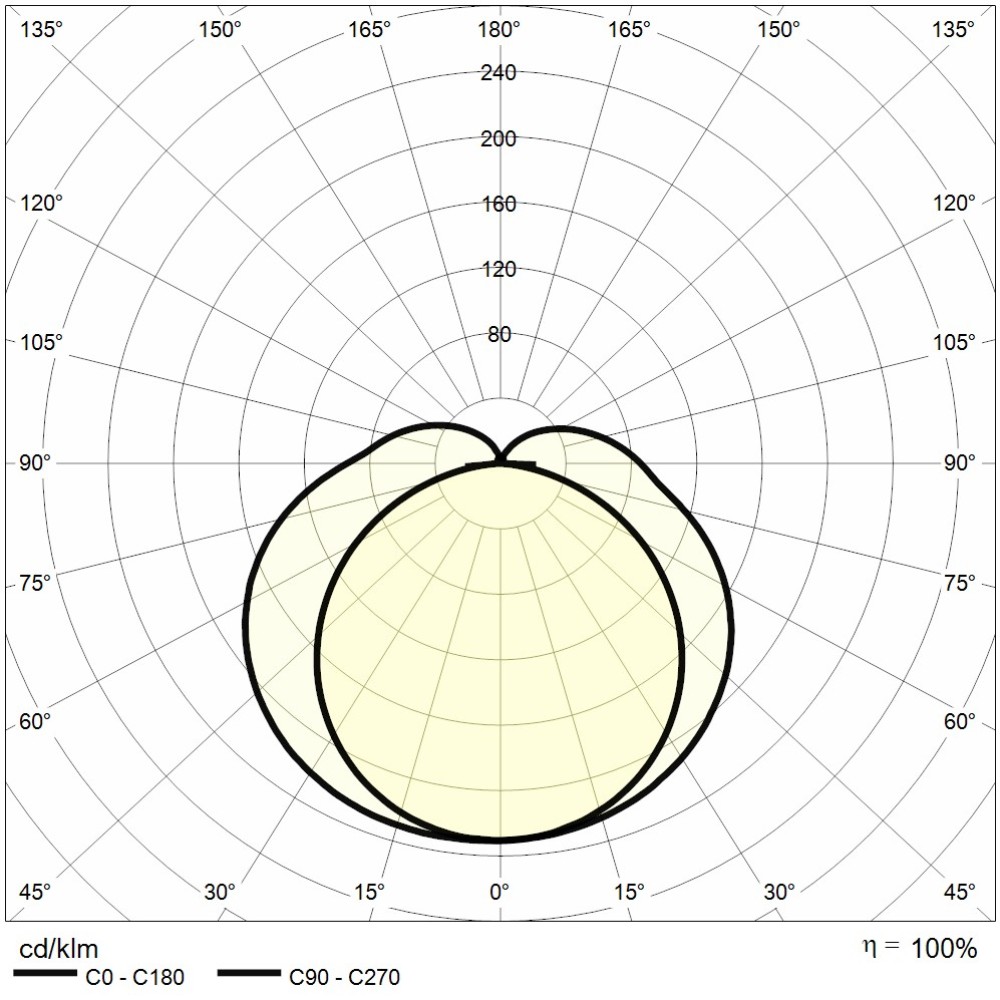

Photometry

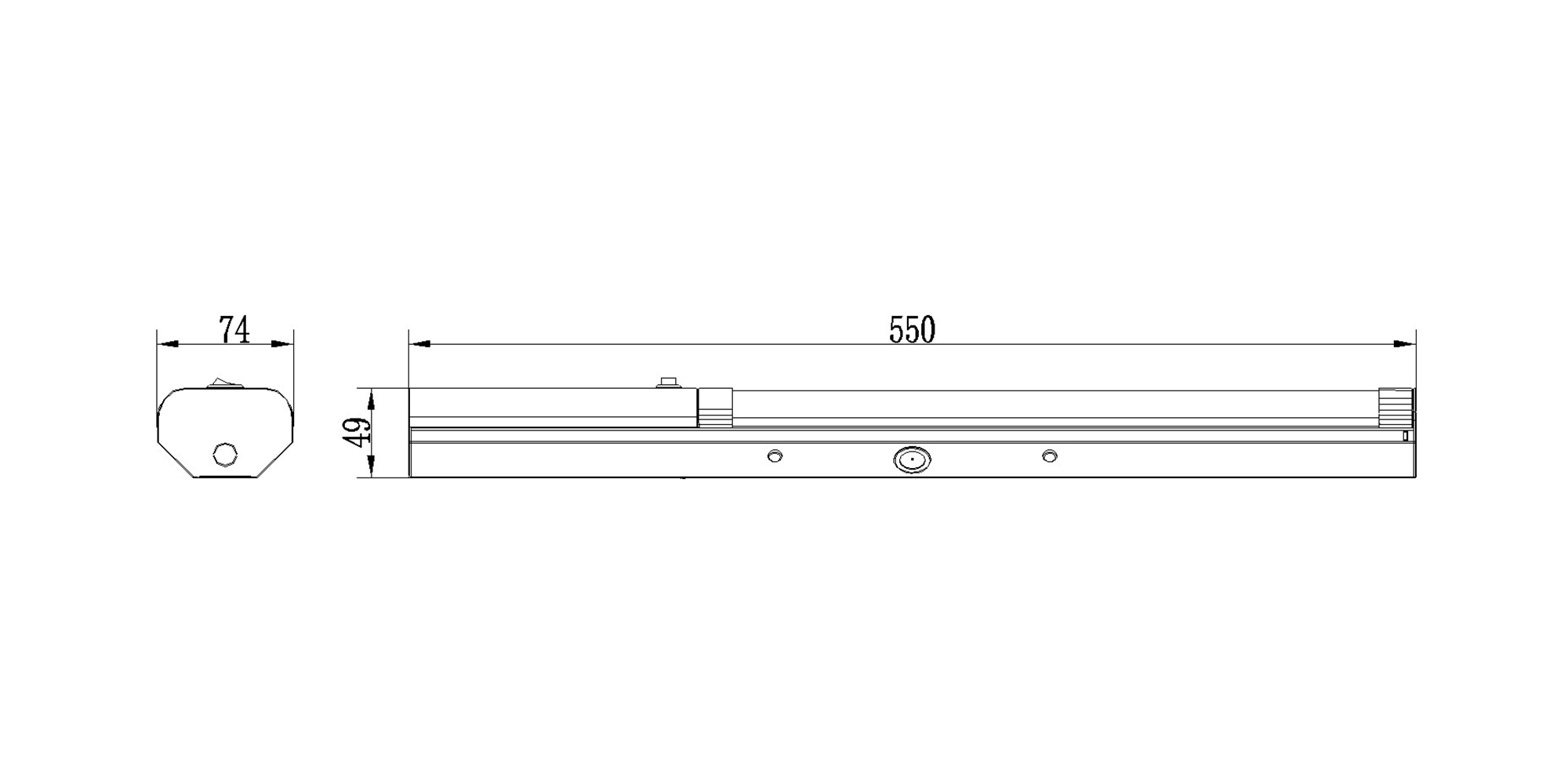

Technical drawing
