Technical description

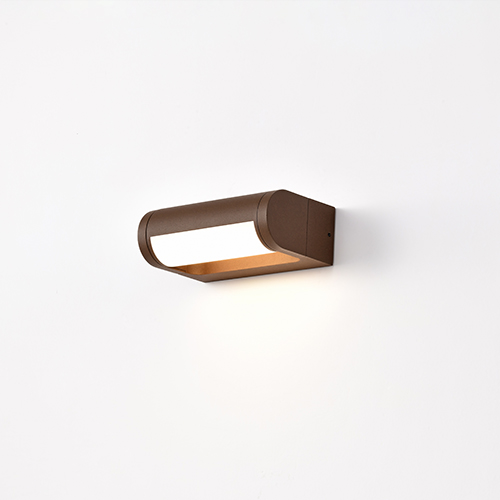

The SPIN outdoor lighting line offers an elegant, modern, and highly versatile solution for enhancing gardens, driveways, and facades. Available in both bollard and wall-mounted versions, this series is designed to withstand the elements effectively: its IP65 rating ensures complete protection against dust and excellent resistance to water jets, making the products ideal for outdoor use. All fixtures in the range feature a 12W LED light source—delivering excellent performance with low energy consumption—and come in various configurations to suit any design requirement. The wall-mounted lights are ideal for perimeter lighting, while the bollards are available in two heights (300 mm and 600 mm) to provide targeted illumination for paths, flowerbeds, and walkways.
Finishes: Three understated, contemporary colors designed to blend seamlessly into any architectural setting: White, Black, and Corten.
Color Temperatures: A choice between warm light (3000K)—ideal for creating a soft, welcoming atmosphere—and natural light (4000K), perfect for greater clarity and visual definition. This is a comprehensive, modular product family designed to illuminate residential or commercial outdoor spaces with aesthetic consistency and high technical reliability.
Lighting data
|
Source type
SMD
|
|
MacAdam (SDCM)
< 1
|
|
Ignition time
0,4 0,4
|
|
Color temperature (CCT)
4000K
|
|
Color render index (CRI)
> 90
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
696
|
|
Beam angle
120°
|
|
Photobiological risk
Risk Group 1 (Low Risk) Risk Group 1 (Low Risk)
|
|
LED Lifetime
L70 B50 50.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): D This contains a light source of energy efficiency class (EU2019/2015): D
|
Mechanical data
|
Width (mm)
111
|
|
Length (mm)
176
|
|
Height (mm)
63
|
|
Weight (g)
580
|
|
IP rating
IP 65
|
|
IK rating
IK 06
|
|
Finishing colour
Corten
|
|
Body material
Aluminum Aluminum
|
|
Diffuser material
Policarbonato Polycarbonate
|
|
Maximal working temperature
+45° C
|
|
Minimal working temperature
-20° C
|
Electrical data
|
Nominal power (W)
12
|
|
Power factor
> 0,8
|
|
Power supply
230V 50/60Hz
|
|
Ballast
Integrated
|
|
Insulation class
I
|
|
Dimmable
No
|
|
Quantity per package
1
|
|
Total quantity per boxing
20
|
Marks

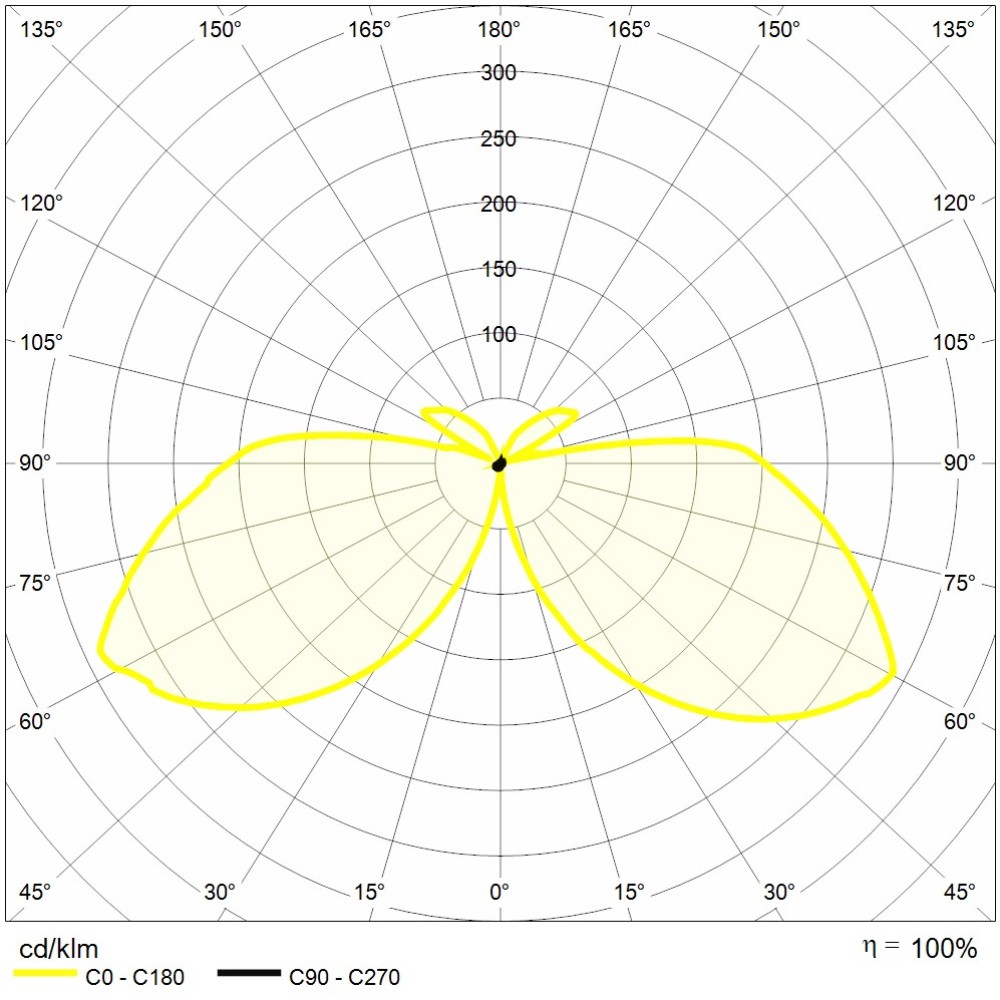

Photometry
Technical drawing
