Step Round

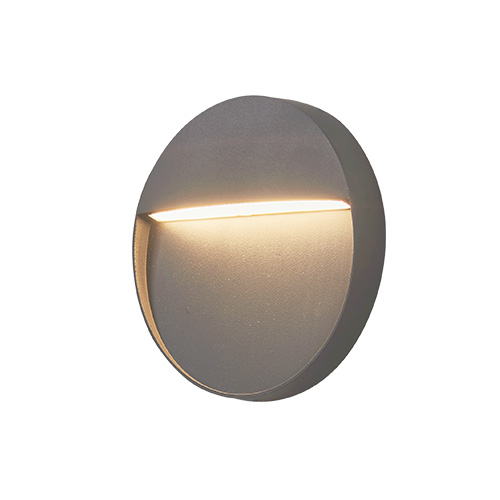

STEP ROUND 3W IP65 ANTHRACITE 4000K
Cod. 6361316
Add to wishlist
IP65
Dustproof and protected against water jets
I
Protection class I
CRI >80
Colour rendering index >80
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Product code: 6361316 | Category: Outdoor luminaires | Model: Step Lights | Product description: STEP ROUND 3W IP65 ANTHRACITE 4000K | Source type: SMD | Color temperature (CCT): 4000K | Color render index (CRI): > 80 | MacAdam (SDCM): < 6 | Lumen output (lm): 114 | Beam angle: 89° | BUG Rating: Risk Group 0 (exempt) | LED Lifetime: L70 B50 50.000h | Energy efficiency class: This contains a light source of energy efficiency class (EU2019/2015): G | Height (mm): 30 | Weight (g): 240 | IP rating: IP 65 | IK rating: IK06 | Finishing colour: Anthracite RAL7011 | Body material: Aluminium | Diffuser material: Polycarbonate | Maximal working temperature: +45° C | Minimal working temperature: -20° C | Nominal power (W): 3 | Power factor: > 0,5 | Power supply: 230V 50/60Hz | Ballast: Integrated | Insulation class: I | Dimmable: No |
Lighting data
|
Source type
SMD SMD
|
|
Color temperature (CCT)
4000K
|
|
Color render index (CRI)
> 80 > 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
114
|
|
Beam angle
89°
|
|
Photobiological risk
Risk Group 0 (exempt)
|
|
LED Lifetime
L70 B50 50.000h L70 B50 50.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): G
|
Mechanical data
|
Height (mm)
30
|
|
Weight (g)
240
|
|
IP rating
IP 65
|
|
IK rating
IK06
|
|
Finishing colour
Anthracite RAL7011
|
|
Body material
Aluminium Aluminum
|
|
Diffuser material
Polycarbonate
|
|
Maximal working temperature
+45° C
|
|
Minimal working temperature
-20° C
|
Electrical data
|
Nominal power (W)
3
|
|
Power factor
> 0,5
|
|
Power supply
230V 50/60Hz 230V 50/60Hz
|
|
Ballast
Integrated Integrated
|
|
Insulation class
I I
|
|
Dimmable
No
|
|
Quantity per package
1
|
|
Total quantity per boxing
50
|
Marks

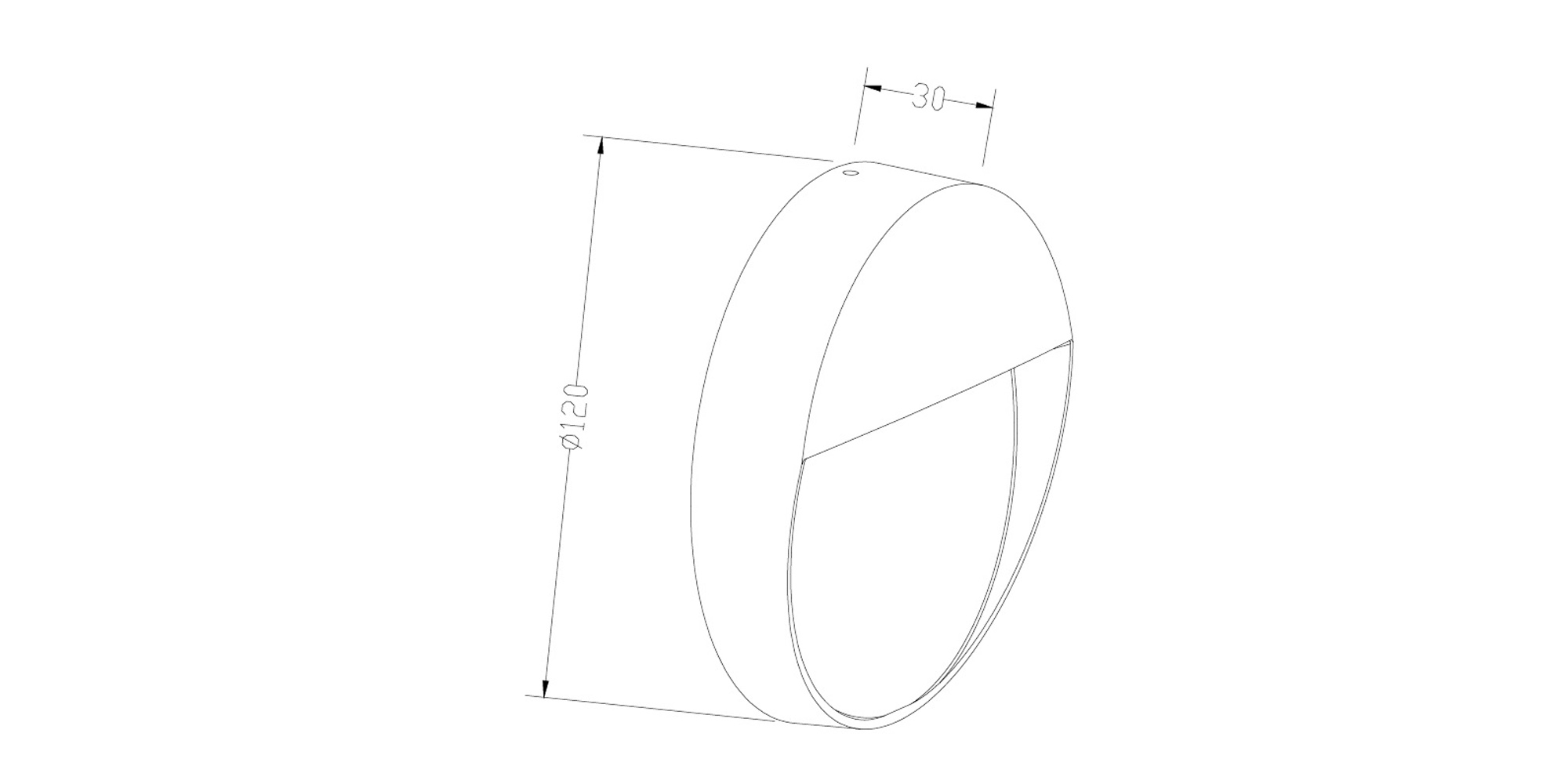

Technical drawing
Documentation
