Applique oval CCT 15W
APPLIQUE CCT OVAL 15W IP54 3000/4000K
Cod. 6361196
IP54
Protected against dust and splashes
II
Protection class II
CRI >80
Colour rendering index >80
CAM compliant
CAM (Minimum Environmental Criteria) compliant product for indoor and outdoor installation
Variable CCT
Selectable colour temperature
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Product code: 6361196 | Category: Outdoor luminaires | Model: Appliques | Product description: APPLIQUE CCT OVAL 15W IP54 3000/4000K | Source type: SMD | Color temperature (CCT): 3000 / 4000K | Color render index (CRI): > 80 | MacAdam (SDCM): > 6 | Lumen output (lm): 1300 / 1400 | Beam angle: 160° | BUG Rating: Risk Group 1 (Low Risk) | LED Lifetime: L70 B50 50.000h | Energy efficiency class: This contains a light source of energy efficiency class (EU2019/2015): F | Width (mm): 104 | Length (mm): 230 | Height (mm): 42 | Weight (g): 200 | IP rating: IP 54 | IK rating: IK08 | Finishing colour: Bianco RAL9003 | Body material: PC (policarbonato) | Maximal working temperature: +50° C | Minimal working temperature: -20°C | Power factor: 15 | Power supply: >0,5 | Ballast: 230V 50/60Hz | Insulation class: Included | Dimmable: II | Plug: No |
Lighting data
|
Source type
SMD
|
|
Color temperature (CCT)
3000 / 4000K
|
|
Color render index (CRI)
> 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
1300 / 1400
|
|
Beam angle
160°
|
|
Photobiological risk
Risk Group 1 (Low Risk)
|
|
LED Lifetime
L70 B50 50.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): F
|
Mechanical data
|
Width (mm)
104
|
|
Length (mm)
230
|
|
Height (mm)
42
|
|
Weight (g)
200
|
|
IP rating
IP 54
|
|
IK rating
IK08
|
|
Finishing colour
White RAL9003
|
|
Body material
PC (polycarbonate)
|
|
Maximal working temperature
+50° C
|
|
Minimal working temperature
-20°C
|
Electrical data
|
Nominal power (W)
15
|
|
Power factor
0,5
|
|
Power supply
230V 50/60Hz
|
|
Ballast
Included
|
|
Insulation class
II
|
|
Dimmable
No
|
Marks

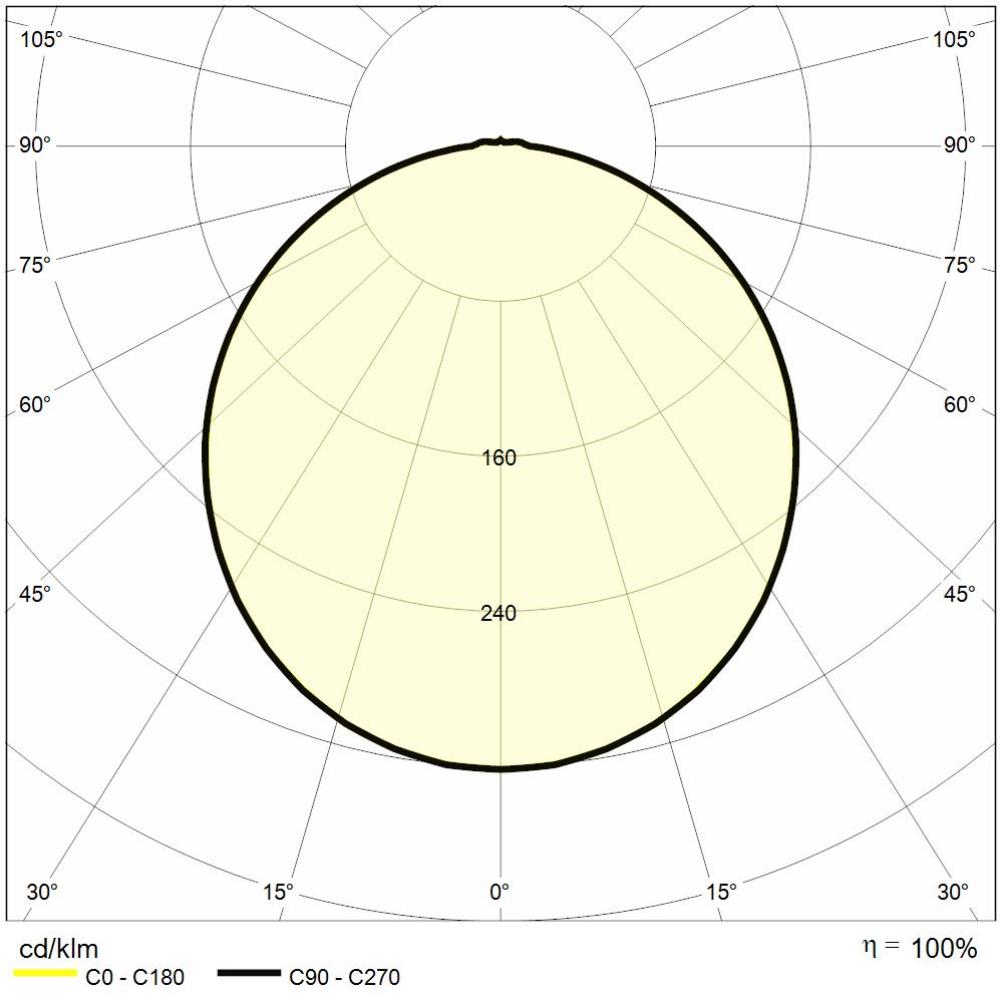

Photometry

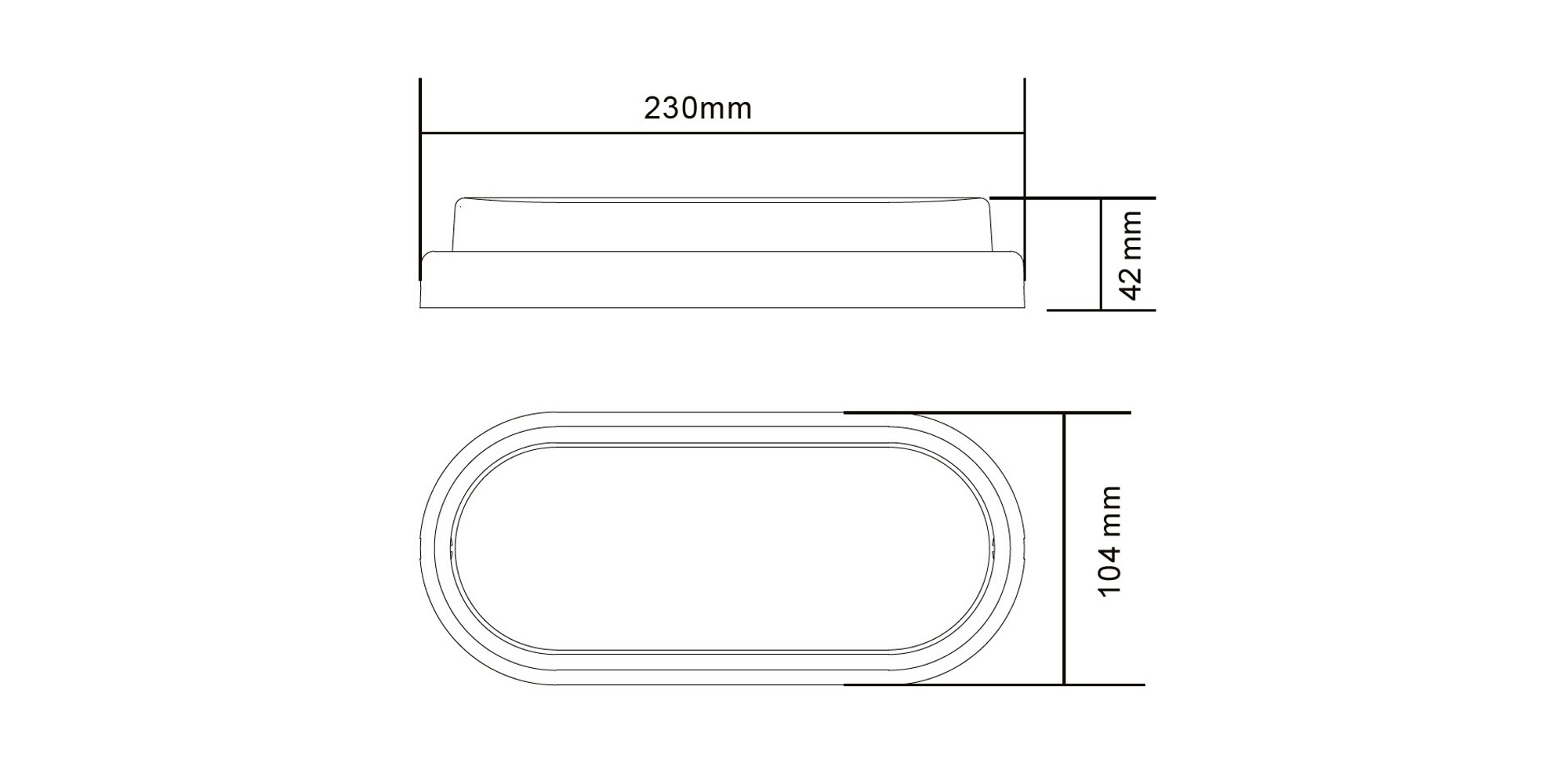

Technical drawing
