Domino 2.0 CCT 300W
DOMINO 2.0 CCT 300W 230V IP65 3000/4000/5000K
Cod. 6361211
Add to wishlist
IP65
Dustproof and protected against water jets
I
Protection class I
CRI >80
Colour rendering index >80
CAM compliant
CAM (Minimum Environmental Criteria) compliant product for indoor and outdoor installation
Variable CCT
Selectable colour temperature
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Product code: 6361211 | Category: Outdoor luminaires | Model: Floodlights | Product description: DOMINO 2.0 CCT 300W 230V IP65 3000/4000/5000K | Source type: SMD | Color temperature (CCT): 3000 / 4000 / 5000K | Color render index (CRI): > 80 | MacAdam (SDCM): > 6 | Lumen output (lm): 41400 / 46000 / 42000 | Beam angle: 110° | BUG Rating: Risk Group 1 (Low Risk) | LED Lifetime: L70 B50 50.000h | Energy efficiency class: This contains a light source of energy efficiency class (EU2019/2015): D | Width (mm): 480 | Length (mm): 384 | Height (mm): 63 | Weight (g): 6195 | IP rating: IP 65 | IK rating: IK07 | Finishing colour: Nero RAL7021 | Type of finishing: Verniciato a polveri di poliestere | Body material: Alluminio | Diffuser material: Vetro temprato | Maximal working temperature: +50° C | Minimal working temperature: -20°C | Power factor: 300 | Power supply: >0,9 | Ballast: 230V 50/60Hz | Insulation class: Integrated | Dimmable: I | Plug: No |
Lighting data
|
Source type
SMD SMD
|
|
Color temperature (CCT)
3000 / 4000 / 5000K
|
|
Color render index (CRI)
> 80 > 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
41400 / 46000 / 42000
|
|
Beam angle
110°
|
|
Photobiological risk
Risk Group 1 (Low Risk) Risk Group 1 (Low Risk)
|
|
LED Lifetime
L70 B50 50.000h L70 B50 50.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): D This contains a light source of energy efficiency class (EU2019/2015): D
|
Mechanical data
|
Width (mm)
480
|
|
Length (mm)
384
|
|
Height (mm)
63
|
|
Weight (g)
6195
|
|
IP rating
IP 65
|
|
IK rating
IK07
|
|
Type of finishing
Polyester powder coated Polyester powder coated
|
|
Finishing colour
Black RAL7021
|
|
Body material
Aluminum Aluminum
|
|
Diffuser material
Tempered glass
|
|
Maximal working temperature
+50° C
|
|
Minimal working temperature
-20° C
|
Electrical data
|
Nominal power (W)
300
|
|
Power factor
> 0,9
|
|
Power supply
230V 50/60Hz 230V 50/60Hz
|
|
Ballast
Integrated Integrated
|
|
Insulation class
I I
|
|
Dimmable
No
|
|
Quantity per package
1
|
|
Total quantity per boxing
1
|
Marks

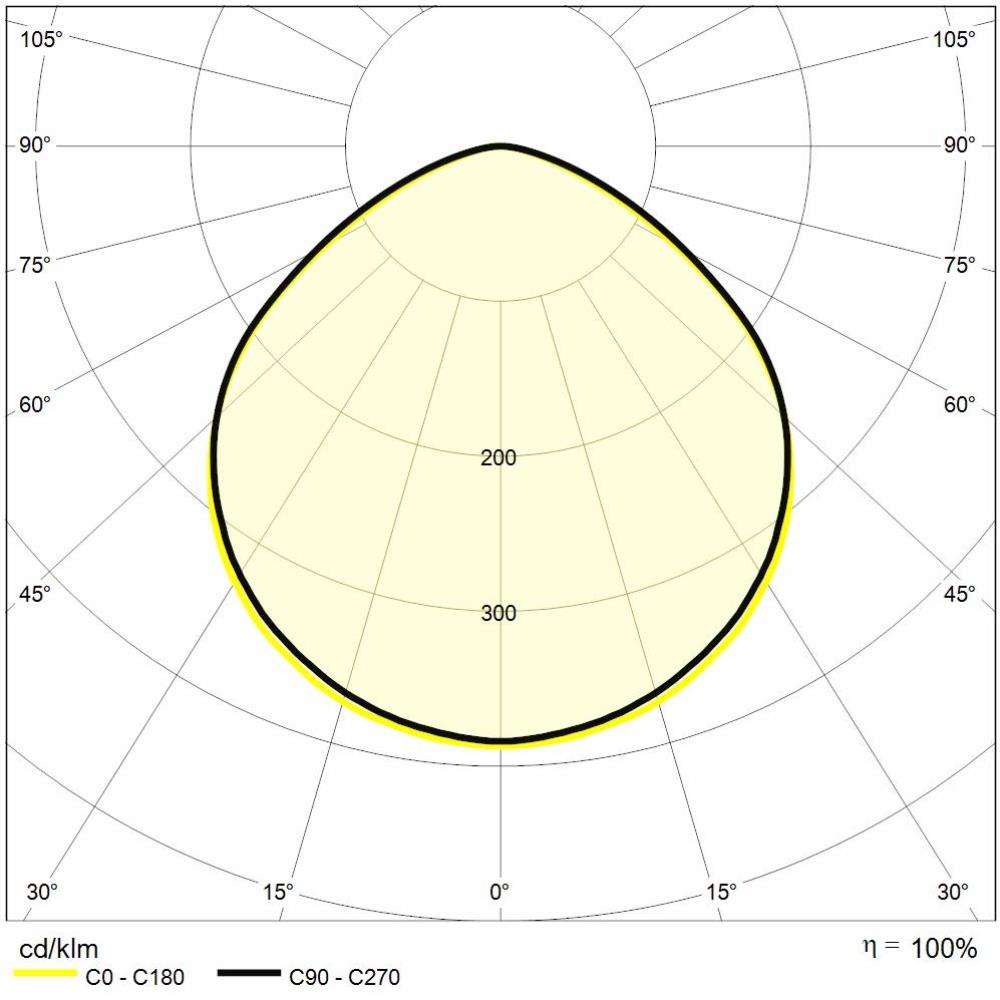

Photometry

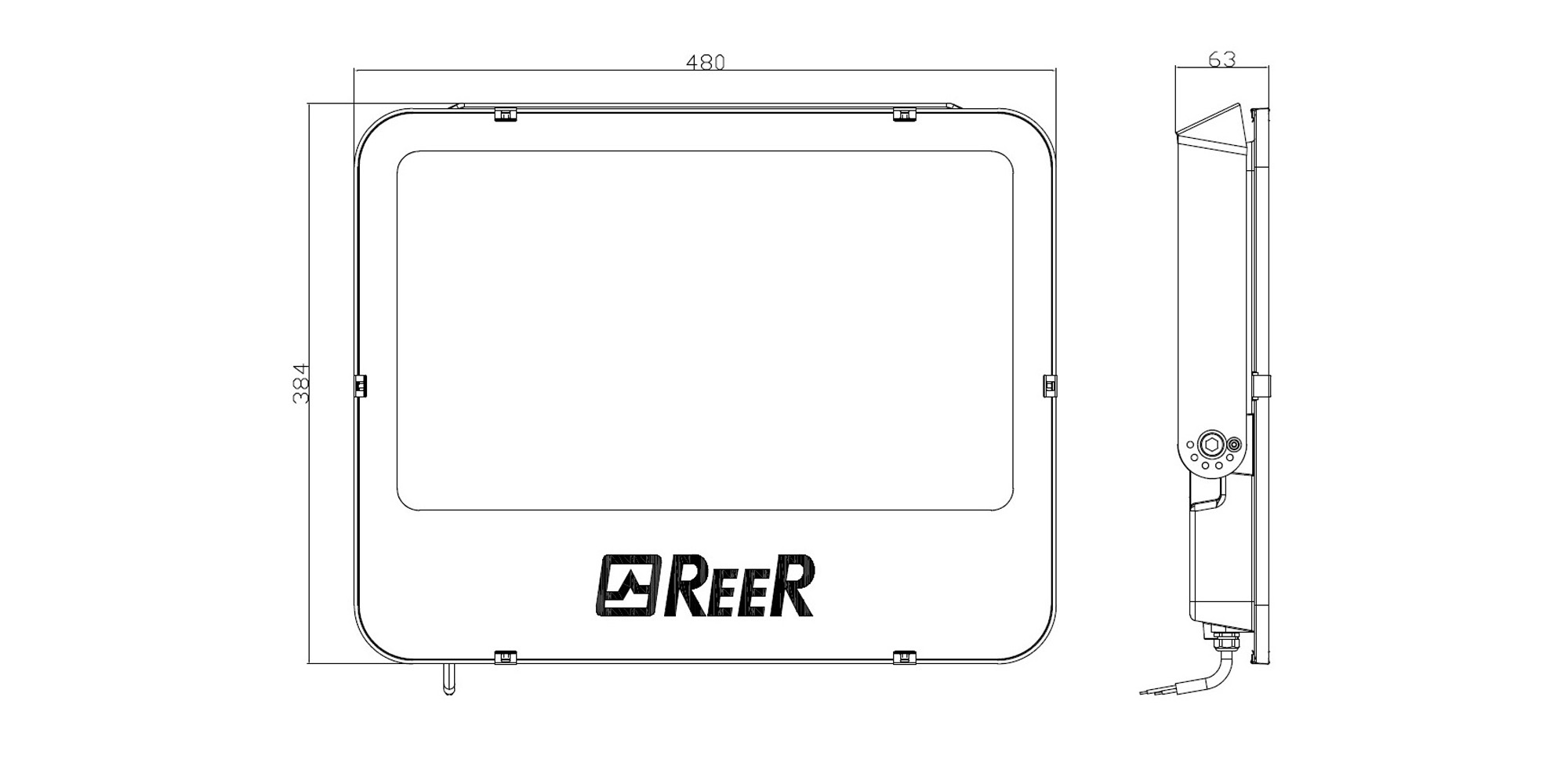

Technical drawing
