LED circoline 300×30 – G10Q

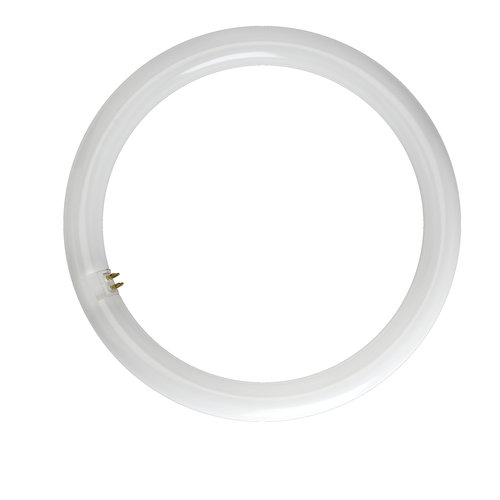

CIRCULAR LED LAMP 18W 6500K G10Q 130° 300x30mm
Cod. 5456411
G10q
Lamp holder: G10q
IP20
Protected from solid bodies larger than 12 mm
G
Energy efficiency class
CRI >80
Colour rendering index >80
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Product code: 5456411 | Category: LED lamps | Model: LED circoline - G10Q | Product description: CIRCULAR LED LAMP 18W 6500K G10Q 130° 300x30mm | Color temperature (CCT): 6500K | Color render index (CRI): > 80 | MacAdam (SDCM): > 6 | Lumen output (lm): 1800 | Beam angle: 130° | LED Lifetime: 25,000h | Energy efficiency class: G | Diameter (mm): 300 | Height (mm): 30 | Lamp holder: G10q | IP rating: IP 20 | IK rating: IK04 | Finishing colour: Bianco Opale | Maximal working temperature: +50° C | Minimal working temperature: -20°C | Power factor: 18 | Power supply: >0,5 | Ballast: 230V 50/60Hz | Plug: No | Quantità per confezione: 10 |
Lighting data
|
Color temperature (CCT)
6500K
|
|
Color render index (CRI)
> 80
|
|
MacAdam (SDCM)
< 6
|
|
Lumen output (lm)
1800
|
|
Beam angle
130°
|
|
LED Lifetime
25.000h
|
|
Energy efficiency class
G
|
Mechanical data
|
Diameter (mm)
300
|
|
Height (mm)
30
|
|
Lamp holder
G10q
|
|
IP rating
IP 20
|
|
IK rating
IK04
|
|
Finishing colour
Opal White
|
|
Maximal working temperature
+50° C
|
|
Minimal working temperature
-20°C
|
Electrical data
|
Nominal power (W)
18
|
|
Power factor
0,5
|
|
Power supply
230V 50/60Hz
|
|
Dimmable
No
|
|
Quantity per package
10
|
Marks

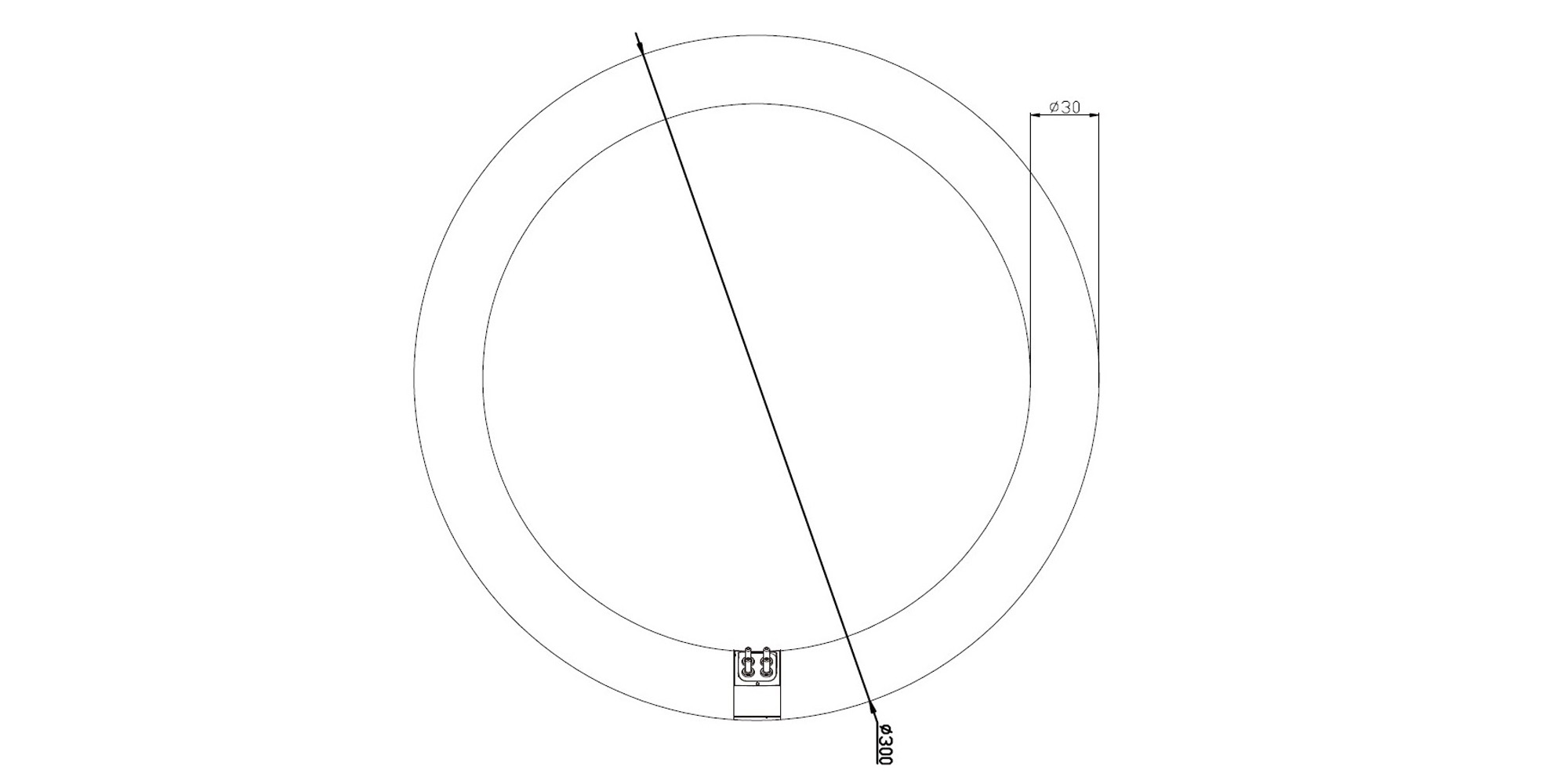

Technical drawing
