Sirio
APPLIQUE SIRIO 1XGU10 230V IP54 WHITE
Cod. 6361325
Add to wishlist
IP54
Protected against dust and splashes
I
Protection class I
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Product code: 6361325 | Category: Appliques | Model: Sirio | Product description: APPLIQUE SIRIO 1XGU10 230V IP54 WHITE | Width (mm): 80 | Length (mm): 112 | Height (mm): 133 | Weight (g): 620 | IP rating: IP54 | IK rating: IK04 | Finishing colour: White RAL9003 | Body material: Aluminum | Diffuser material: Tempered glass | Maximal working temperature: +45° C | Minimal working temperature: -20° C | Nominal power (W): max 35 | Power supply: 230V 50/60Hz | Ballast: Integrated | Insulation class: I | Quantity per package: 1 |
Mechanical data
|
Width (mm)
80
|
|
Length (mm)
112
|
|
Height (mm)
133
|
|
Weight (g)
620
|
|
IP rating
IP54
|
|
IK rating
IK04
|
|
Finishing colour
White RAL9003 White RAL9003
|
|
Body material
Aluminum Aluminum
|
|
Diffuser material
Tempered glass
|
|
Maximal working temperature
+45° C
|
|
Minimal working temperature
-20° C
|
Electrical data
|
Nominal power (W)
max 35
|
|
Power supply
230V 50/60Hz
|
|
Ballast
Integrated Integrated
|
|
Insulation class
I
|
|
Quantity per package
1
|
|
Total quantity per boxing
12
|
Marks

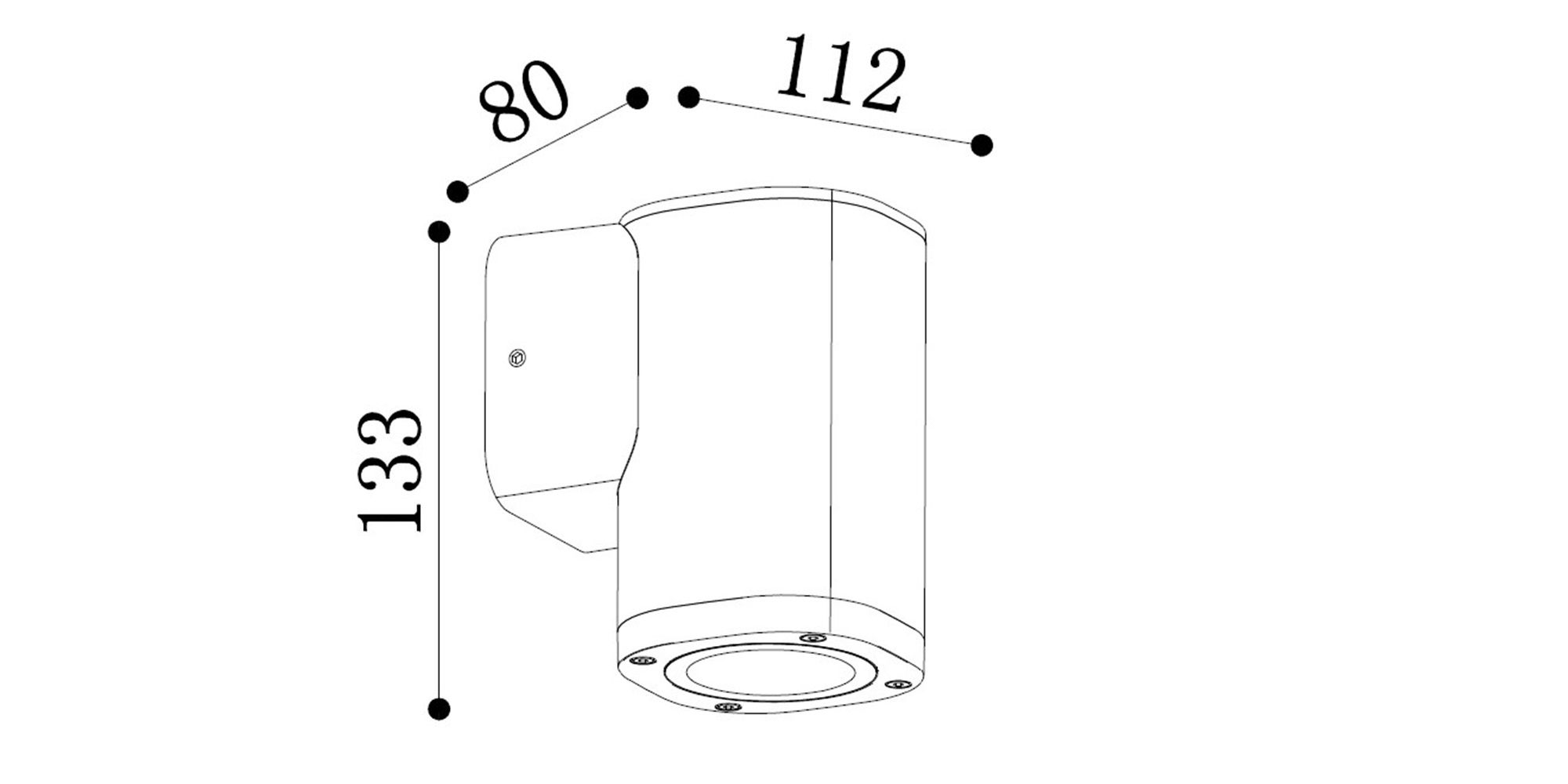

Technical drawing
Documentation
