Trio CCT 10W

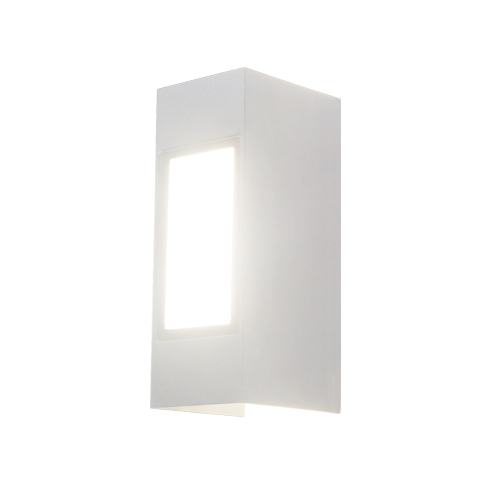

Trio CCT Wall Light 10W IP65 White
Cod. 6361373
Add to wishlist
IP65
Dustproof and protected against water jets
I
Protection class I
CRI >80
Colour rendering index >80
Variable CCT
Selectable colour temperature
ReeR warranty
ReeR guarantees the product for a time duration of 3 years
Technical description
Elegant outdoor wall light (IP65), complete with CCT selector for customizing color rendering.
The compact and durable body makes it a functional design element for terraces, balconies, and walkways.
Lighting data
|
Source type
SMD
|
|
MacAdam (SDCM)
< 1
|
|
Ignition time
0,4
|
|
Color temperature (CCT)
3000 / 4000 / 6000K
|
|
Color render index (CRI)
> 80
|
|
MacAdam (SDCM)
< 5
|
|
Lumen output (lm)
671 / 735 / 741
|
|
Beam angle
73°
|
|
Photobiological risk
Risk Group 0 (exempt)
|
|
LED Lifetime
L70 B50 50.000h
|
|
Energy efficiency class
This contains a light source of energy efficiency class (EU2019/2015): E
|
Mechanical data
|
Width (mm)
80
|
|
Length (mm)
70
|
|
Height (mm)
185
|
|
Weight (g)
820
|
|
IP rating
IP 65
|
|
IK rating
IK 06
|
|
Finishing colour
White RAL9003 White RAL9016
|
|
Body material
Aluminum Aluminum
|
|
Diffuser material
Tempered glass
|
|
Maximal working temperature
+45° C
|
|
Minimal working temperature
-20° C
|
Electrical data
|
Nominal power (W)
10
|
|
Power factor
0,6
|
|
Power supply
230V 50/60Hz
|
|
Ballast
Integrated Integrated
|
|
Insulation class
I
|
|
Dimmable
No
|
|
Quantity per package
1
|
|
Total quantity per boxing
10
|
Marks

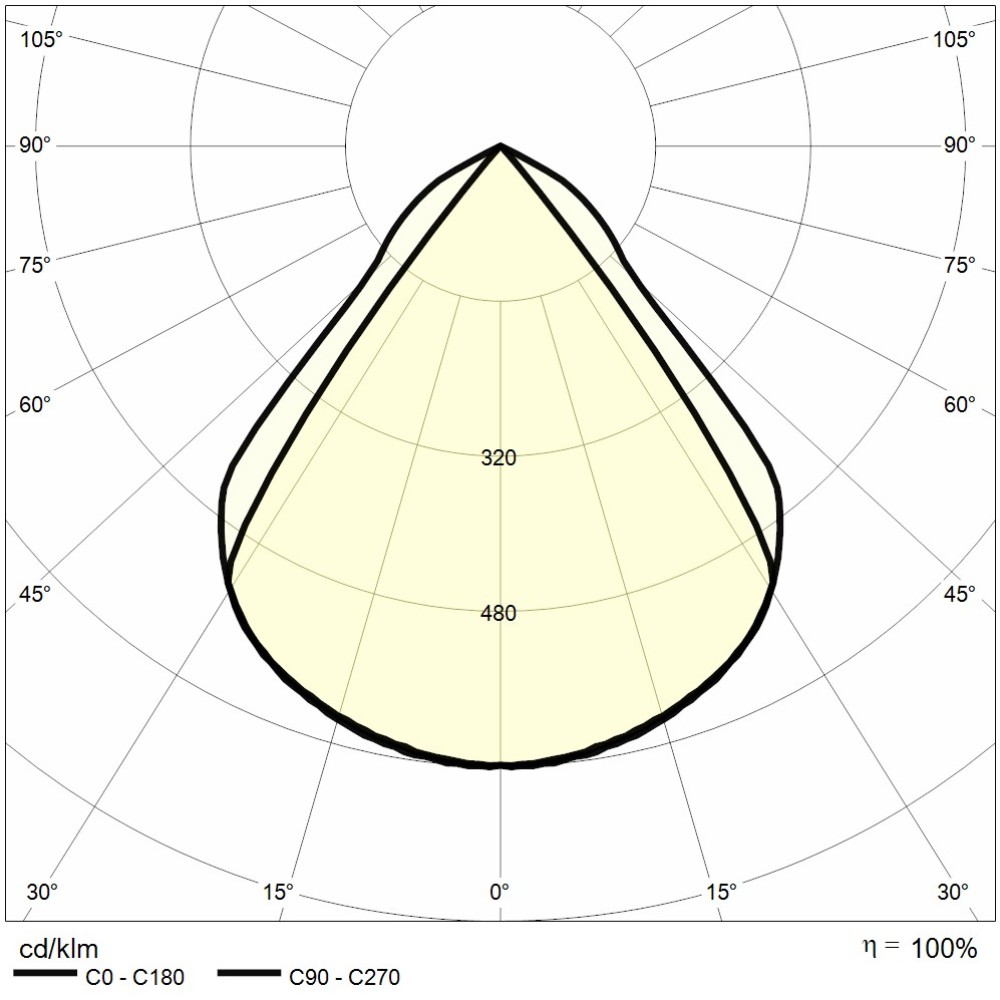

Photometry

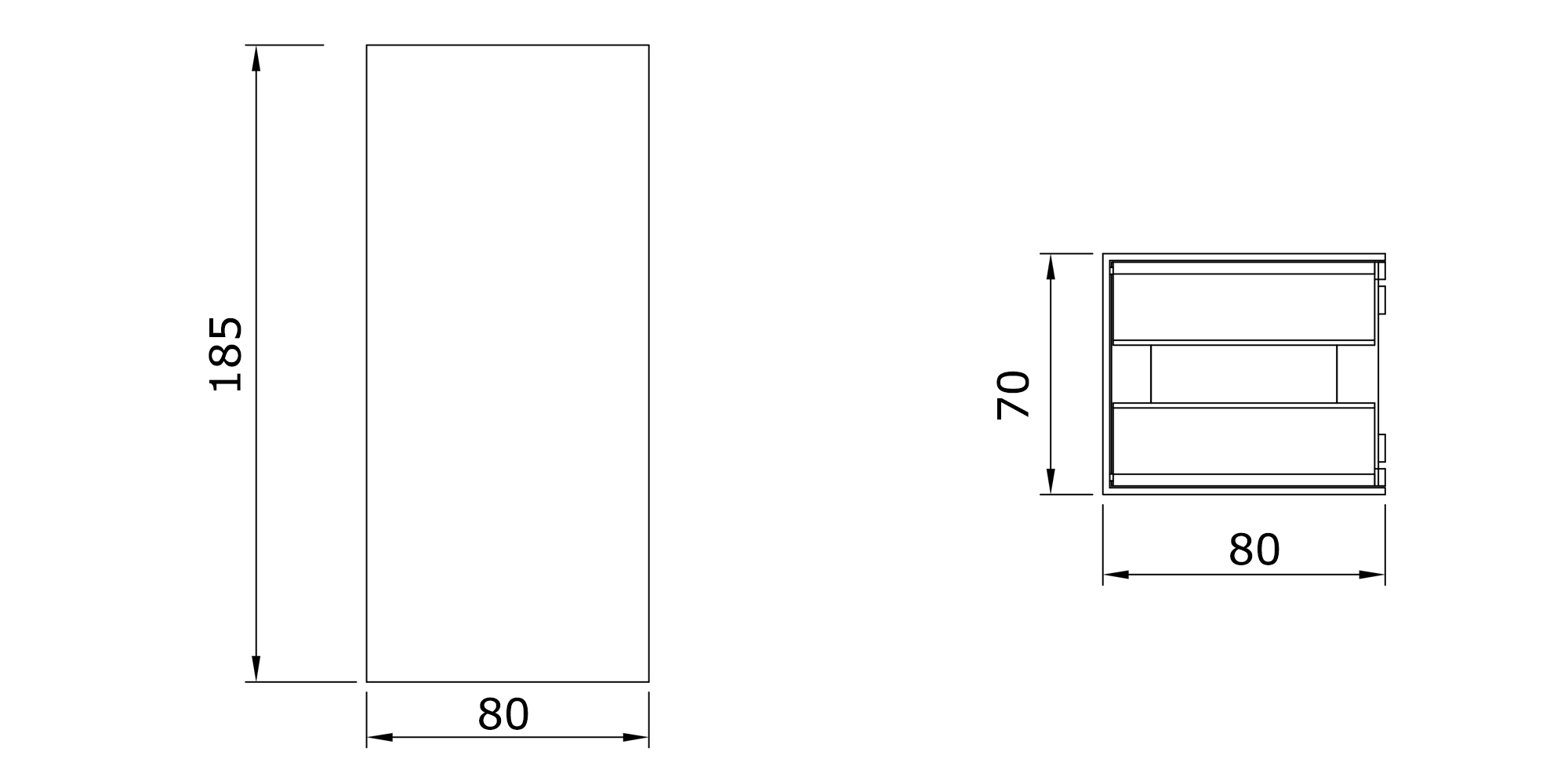

Technical drawing
